Nordlux Track X-Connector

£28.00 GBP

£28.00 GBP ~~£28.00 GBP~~

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

16048611

Dimensions

Weight (kg): 0.133
Length (cm): 17.2
Height (cm): 1.8
Width (cm): 17.2

Functionality

F-norm rated: No
Cable excluded?: No

Certifications & Ratings

Product warranty: 2-15 years
CE (EU directive) compatible?: Yes
Safety classification: Class I

DELIVERY & RETURNS

Please review our Shipping and Returns policies to learn how your order will arrive to your project.

We gladly offer our guests up to 30 days from delivery to return or exchange this merchandise to ensure your satisfaction. To process a return or exchange, we require you to provide the original receipt. Before finalizing your purchase, please verify measurements, finishes and light sources. Delivery and handling fees are not refundable. Please Note: Custom or Made-to-order items cannot be returned or exchanged. For more information, please see our Terms & Conditions.

MPNs

Black: 86079903

White: 86079901

Low-profile X-connector for four-way Link track junctions; joins and supplies power across intersecting runs. Available in Black and White.

Join four track runs at a 90° intersection
Maintain electrical continuity across junctions
Blend into schemes with matte Black or White
Secure each arm with a locking screw
Install into Link system end caps

The Nordlux Track X-Connector is a purpose-made lighting accessory that joins four sections of track at 90° intersections. Designed for Link system installations, it provides a neat, low-profile junction that carries both the structural load and the electrical circuit across perpendicular runs.

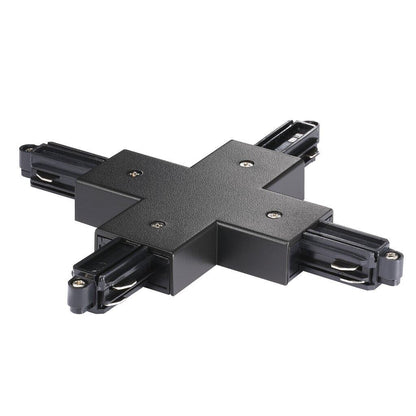

The connector has a cross-shaped configuration with four arms extending from a central square hub. It is offered in Black and White finishes to match common track systems and to blend with surrounding fittings.

The central hub is secured with four small Phillips-head screws and each arm contains internal metal contact plates to maintain electrical continuity. Male-style connector arms slide into compatible track ends and a small securing screw at the tip of each arm locks the unit into the rail.

Functioning as both a mechanical join and an electrical bridge, the X-Connector allows power to pass between four connected track segments, enabling modular grid and intersecting layouts. Its low profile and uniform finish help maintain a cohesive appearance across the track run.

Install the connector at the rail end caps of compatible Link track profiles, and tighten the securing screws to lock each arm in place. This product is an accessory only; track heads, lamps, drivers or transformers are not included. Manufacturer warranty varies between 2–15 years depending on the specific Nordlux product terms.

Lighting Design Online recommends this connector when planning considered, grid-style track arrangements. We provide design-led guidance to ensure the junction is specified and installed correctly, backed by quality assurance and project-friendly support so your track scheme performs reliably and looks resolved.

FAQs

What does the Nordlux Track X-Connector do?

It joins four sections of Link track at a 90 intersection, acting as both a structural join and an electrical bridge so power continues across all runs.

Which finishes are available?

The connector is available in Black and White to match common track finishes.

How is the connector installed and secured?

Male-style connector arms slide into compatible track ends and a small securing screw at each arm tip locks the component. The central hub is fastened with four Phillips-head screws.

Does the connector include lamps, drivers or track heads?

No. This product is an accessory only; lamps, drivers, transformers and track heads are supplied separately.
