Node Lighting

Node Lighting Dim to Warm LED Tape

£136.00 GBP

£136.00 GBP ~~£136.00 GBP~~

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

20210242

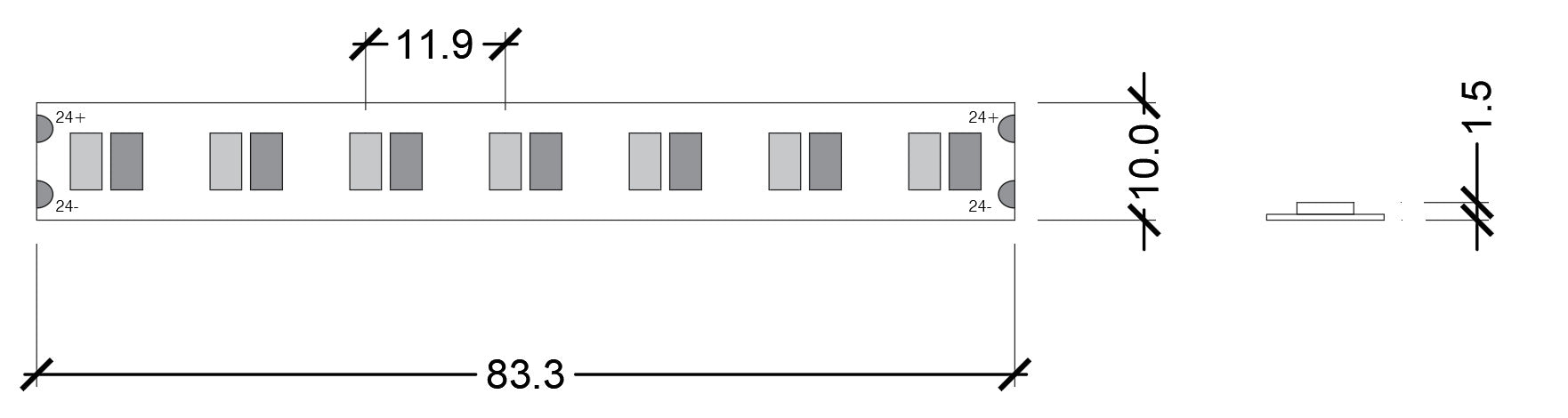

Dimensions

Length (cm): 8.33
Height (cm): 0.15
Width (cm): 0.1

Functionality

R9 value: 69
Wattage: 14.4
Driver type: Constant Voltage
Cri: 90
Colour temperature: 1900K - 3000K
Includes driver: No
Driver location: Remote

Certifications & Ratings

Product warranty: 5 Years Warranty
IP rating: IP20
CE (EU directive) compatible?: Yes

DELIVERY & RETURNS

Please review our Shipping and Returns policies to learn how your order will arrive to your project.

We gladly offer our guests up to 30 days from delivery to return or exchange this merchandise to ensure your satisfaction. To process a return or exchange, we require you to provide the original receipt. Before finalizing your purchase, please verify measurements, finishes and light sources. Delivery and handling fees are not refundable. Please Note: Custom or Made-to-order items cannot be returned or exchanged. For more information, please see our Terms & Conditions.

MPNs

LS-DW-20-24-90-1930

Dim-to-warm LED tape (3000K→1900K), 5m reel, 24V DC, CRI 90, IP20 — flexible linear lighting for warm ambient control.

Create warm ambience from 3000K to 1900K
Run on 24V DC constant-voltage supply
Cut to length at marked intervals
Specify confidently with CRI 90
Install low-profile, flexible linear lighting

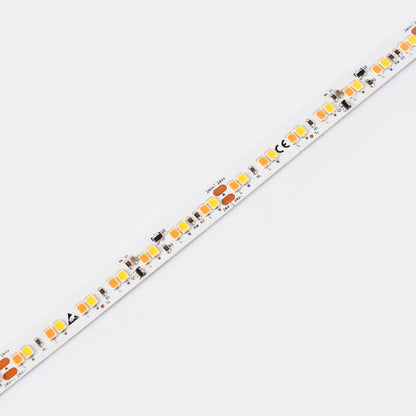

Node Lighting Dim to Warm LED Tape is a flexible LED strip from the Dim to Warm range, supplied on a 5m reel and engineered to shift from 3000K down to 1900K as it dims. The product is a low-profile linear lighting solution intended for indoor linear and accent applications where warm, graduated ambience is required.

The tape is formed as a narrow, ribbon-like PCB with surface-mounted LEDs arranged in alternating pairs to achieve tunable white (warm/cool) control. Cut points are clearly marked along the length to trim to size, and the strip is presented for simple, precise installation from the reel.

Construction uses a white printed circuit board with detailed silkscreening, exposed solder pads at regular intervals and compact surface-mount components—resistors, transistors and capacitors—integrated to manage current. A marked Tc test point and component labelling support installation and maintenance.

Light performance is tuned for warm ambience: the dim-to-warm behaviour runs 3000K down to 1900K and the LEDs have a CRI of 90 for good colour rendering. The strip is controlled as a dual-channel/tunable-white product (identified on-board as 'W' and 'L') and is suited to ambient or accent runs where gradual warmth and balanced light are desired. Note the IP20 rating means the product is for internal, dry-zone use only.

Installation requires a 24V DC constant-voltage supply and an appropriate controller or dimmer capable of managing dim-to-warm/tunable-white LED strips; the tape features clearly marked 24V terminals and regular cut points for onsite customising. Observe the silkscreened polarity and Tc test point during installation. The product is backed by a 5-year warranty.

At Lighting Design Online we present the Dim to Warm LED Tape with clarity and practical guidance so you specify the right linear solution for your scheme. Our aim is to help you choose compatible drivers and control gear, understand installation constraints, and achieve the considered, long-lasting ambience this tunable tape is designed to deliver.

FAQs

What power supply does this LED tape require?

This strip operates on 24V DC and requires a suitable constant-voltage 24V supply and controller for dim-to-warm operation.

Can the tape be cut to length on site?

Yes. Cut points are marked with a scissor icon and thin line at regular intervals to allow length adjustments.

Is the tape suitable for bathrooms or outdoor use?

No. The IP20 rating indicates the product is for indoor, dry-zone environments only and not suitable for wet areas.

What colour rendering and dimming behaviour does it offer?

The LEDs deliver CRI 90 and a dim-to-warm response from 3000K down to 1900K, achieved via the strip's dual-channel tunable-white configuration.

About Node Lighting

UK Lighting

Node Lighting is a Northern Ireland lighting maker focused on considered, technically capable fixtures for contemporary interiors. Their Dim to Warm range shows a practical design approach: compact, well-labelled PCBs, integrated control components and precise silkscreening that help installers and designers specify confidently. The brand favours quality of light and practical detailingtunable colour temperatures, good colour rendering and project-friendly supportmaking their products reliable choices for schemes where ambience and longevity matter. Node Lighting offers a five-year warranty on this range, underlining its commitment to durability.
