20206481

Dimensions

Height (cm): 78.2
Width (cm): 78.2

Functionality

Operating voltage: 230/240V
Includes bulbs: Yes
F-norm rated: Yes

Certifications & Ratings

Recommended application surface: Ceiling
Product warranty: 2 years
IP rating: IP20
CE (EU directive) compatible?: Yes
Safety classification: Class I
Interior / exterior restrictions: Interior Use Only

DELIVERY & RETURNS

Please review our Shipping and Returns policies to learn how your order will arrive to your project.

We gladly offer our guests up to 30 days from delivery to return or exchange this merchandise to ensure your satisfaction. To process a return or exchange, we require you to provide the original receipt. Before finalizing your purchase, please verify measurements, finishes and light sources. Delivery and handling fees are not refundable. Please Note: Custom or Made-to-order items cannot be returned or exchanged. For more information, please see our Terms & Conditions.

MPNs

F1842044

Minimal, sculptural Flos Coordinates pendant with integrated LED, champagne‑anodised aluminium and optical silicone diffusers — dimmable via push, 1‑10V or DALI.

Create sculptural ambient light with low glare
Specify high CRI integrated LEDs for fidelity
Choose from S1, S2, S3, S4 and S Module
Set output on-site with the included push system
Support multiple dimming: push, 1–10V, DALI

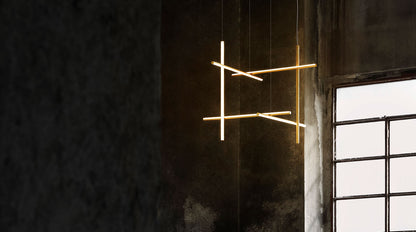

The Flos Coordinates Pendant is part of the Coordinates range designed by Michael Anastassiades. This ceiling-mounted pendant arranges linear aluminium rods into a three-dimensional, grid-like sculpture that provides diffuse ambient illumination for architectural and decorative settings.

The design reads as a minimalist Cartesian composition: one primary vertical rod intersected by two horizontal rods to form an asymmetrical, sculptural volume. The range includes the four hanging models S1, S2, S3 and S4, plus the repeatable S Module for larger grid installations.

Each element is crafted from extruded aluminium with a champagne‑anodised finish and a slim, cylindrical profile. Light is emitted through platinum optical silicone diffusers and the structure is suspended from the ceiling by thin tension cables with a matching cylindrical ceiling rose.

Light is delivered by integrated LED strips concealed within the linear modules, producing diffuse, low‑glare illumination. Typical nominal output for configurations is shown as 32W → 1,920 lm at 2,700K with CRI >95, making the fitting suitable where accurate colour rendition and warm ambience are required.

The ceiling rose houses integrated electronics and accepts multiple dimming systems: push, 1–10V and DALI. A push dimming function is included to set light output at installation. A Class III version is available where a remote power supply is required; an optional 48Vdc 80W power supply (RF29208) is offered. The LED light source is replaceable by a professional. The product carries an IP20 rating and a two‑year manufacturer warranty.

At Lighting Design Online we frame products like the Flos Coordinates Pendant as part of a considered lighting strategy: the sculptural form gives clear centrepiece identity, while specification details — finish, diffuser material, CRI and dimming options — let you select the right technical solution for the project. We combine design-led guidance with practical, project-friendly information so the final result is both beautiful and dependable.

FAQs

Does the Coordinates Pendant use integrated LEDs?

Yes. The system uses integrated LED strips concealed within the linear aluminium modules; the light source is replaceable by a professional.

Which dimming systems are compatible?

The ceiling rose supports push, 110V and DALI dimming. A push system is included to set light output during installation.

Are there different models or configurations available?

Yes. Coordinates is offered in four hanging models (S1, S2, S3 and S4) and the repeatable S Module for larger grid compositions; the hanging models use 2.4 m suspension cables.

What are the material and finish details?

Linear elements are extruded aluminium with a champagneanodised finish and use platinum optical silicone diffusers for even, diffuse light.

Is this fitting suitable for wet rooms or outdoors?

No. The Coordinates Pendant has an IP20 rating and is intended for indoor architectural and decorative applications only.

About Flos Lighting

Italian Lighting

Flos is an Italian lighting manufacturer known for combining refined materials with precise engineering and contemporary design. Working with designers such as Michael Anastassiades, the brand favours architectural restraint, careful proportions and technically considered detailing in this case extruded aluminium, optical silicone diffusion and integrated electronics. Flos products are specified where design intent and functional performance must align, offering clarity for designers and assurance for project work.
