Britelux Three Phase Track End-Feed Connector

£9.10 GBP

£9.10 GBP ~~£9.10 GBP~~

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

16705814

Dimensions

Weight (kg): 0.05
Length (cm): 10.5
Height (cm): 3.3
Width (cm): 3.2

Functionality

F-norm rated: No
Cable excluded?: No

Certifications & Ratings

Product warranty: 1 Year Warranty
IP rating: IP20
CE (EU directive) compatible?: Yes
Safety classification: Class II
Interior / exterior restrictions: Interior Use Only

DELIVERY & RETURNS

Please review our Shipping and Returns policies to learn how your order will arrive to your project.

We gladly offer our guests up to 30 days from delivery to return or exchange this merchandise to ensure your satisfaction. To process a return or exchange, we require you to provide the original receipt. Before finalizing your purchase, please verify measurements, finishes and light sources. Delivery and handling fees are not refundable. Please Note: Custom or Made-to-order items cannot be returned or exchanged. For more information, please see our Terms & Conditions.

MPNs

Black: XTS11-2

White: XTS11-3

End-feed connector for 3-circuit track systems; available in Black or White. IP20, modular plug-and-play component for professional track installations.

Supply mains power to 3-circuit track
Choose Black or White finish
Install modular plug-and-play connector
Secure wiring via accessible top terminal
Engage track busbars with metallic contacts
Rated IP20 for interior installations

Britelux Three Phase Track End-Feed Connector is a purpose-built end-feed for 3-circuit track lighting. The component supplies mains power to a track rail and is intended for professional track installations.

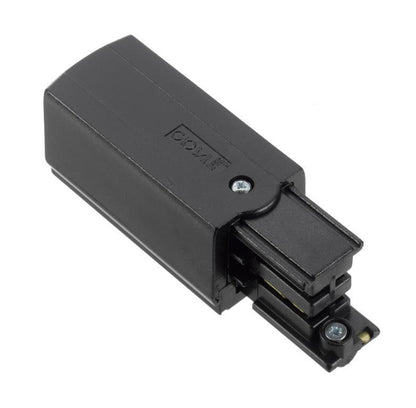

The connector is formed as a compact rectangular housing with a narrower insertion profile that slides into the track rail. It is offered in White and Black to match common track finishes.

The body is moulded from a matte, non-conductive plastic with exposed copper or brass-coloured contacts at the insertion end to engage the track busbars. Two accessible silver screws provide access to the internal wiring terminals and mechanical securement.

The arrangement of the metal contacts is specific to 3-circuit systems, allowing independent control of multiple circuits within a single track run. The unit is rated IP20 and is therefore intended for interior, dry locations.

Installation requires terminating the incoming mains to the internal terminals (accessed via the top screw) and inserting the profile into the track, with the side screw used to secure the connection. This component does not include lamps, drivers or transformers and is supplied with a 1 year warranty.

Lighting Design Online recommends choosing components such as this end-feed as part of a considered track layout so the final installation delivers the intended ambience and control. We provide practical, project-friendly support and professional assurance to help specify the right elements and avoid common installation uncertainty.

FAQs

What is this component used for?

It is an end-feed connector that supplies mains power from a cable to a 3-circuit track rail.

Which finishes are available?

The connector is available in White and Black to match standard track systems.

Is this suitable for bathrooms or outdoor use?

No. The unit is IP20 rated and intended for interior, dry locations only.

Does the product include lamps, drivers or transformers?

No. This is a track end-feed component; lamps, drivers and transformers are not part of the product.

How is the connector secured and wired?

The top screw gives access to internal wiring terminals for mains terminations; a side screw secures the insertion profile mechanically once fitted.

About Britelux Lighting

Irish Lighting

Britelux is a US-based lighting manufacturer with a practical, specification-driven approach to professional lighting infrastructure. Their Three Phase Track components emphasise robust, serviceable details moulded insulating housings, exposed contact geometry for reliable busbar engagement and clear access to wiring terminals. The brand is suited to considered interiors and project work where reliable track performance and ease of installation matter. Britelux products offer straightforward specification language and a restrained functional aesthetic that supports durable, long-term installations.
