Astro

Astro SLT3-350ISC LED Driver

£18.00 GBP

£18.00 GBP ~~£18.00 GBP~~

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

20210115

Dimensions

Depth (cm): 2.3
Height (cm): 5.2
Width (cm): 3

Functionality

Operating voltage: 100-240V

Certifications & Ratings

Product warranty: 3 years
IP rating: IP66
CE (EU directive) compatible?: Yes
Safety classification: Class II

DELIVERY & RETURNS

Please review our Shipping and Returns policies to learn how your order will arrive to your project.

We gladly offer our guests up to 30 days from delivery to return or exchange this merchandise to ensure your satisfaction. To process a return or exchange, we require you to provide the original receipt. Before finalizing your purchase, please verify measurements, finishes and light sources. Delivery and handling fees are not refundable. Please Note: Custom or Made-to-order items cannot be returned or exchanged. For more information, please see our Terms & Conditions.

MPNs

6008039

Compact Astro SLT3‑350ISC LED driver; hardwired 100–240V AC to 3–12V DC, 350mA output. IP66 sealed housing for installation in tight, damp locations.

Deliver a regulated 350mA constant‑current output
Convert 100–240V AC to 3–12V DC
Install in tight spaces with compact form
Use in damp locations with IP66 sealing
Comply with SELV, CE and double insulation
Benefit from a three‑year warranty

The Astro SLT3-350ISC LED Driver is a compact LED power supply from Astro, designed to convert mains voltage for use with low-voltage LED lighting components. It is intended for integration within light fittings or electrical enclosures and is built for use where a small, sealed driver is required.

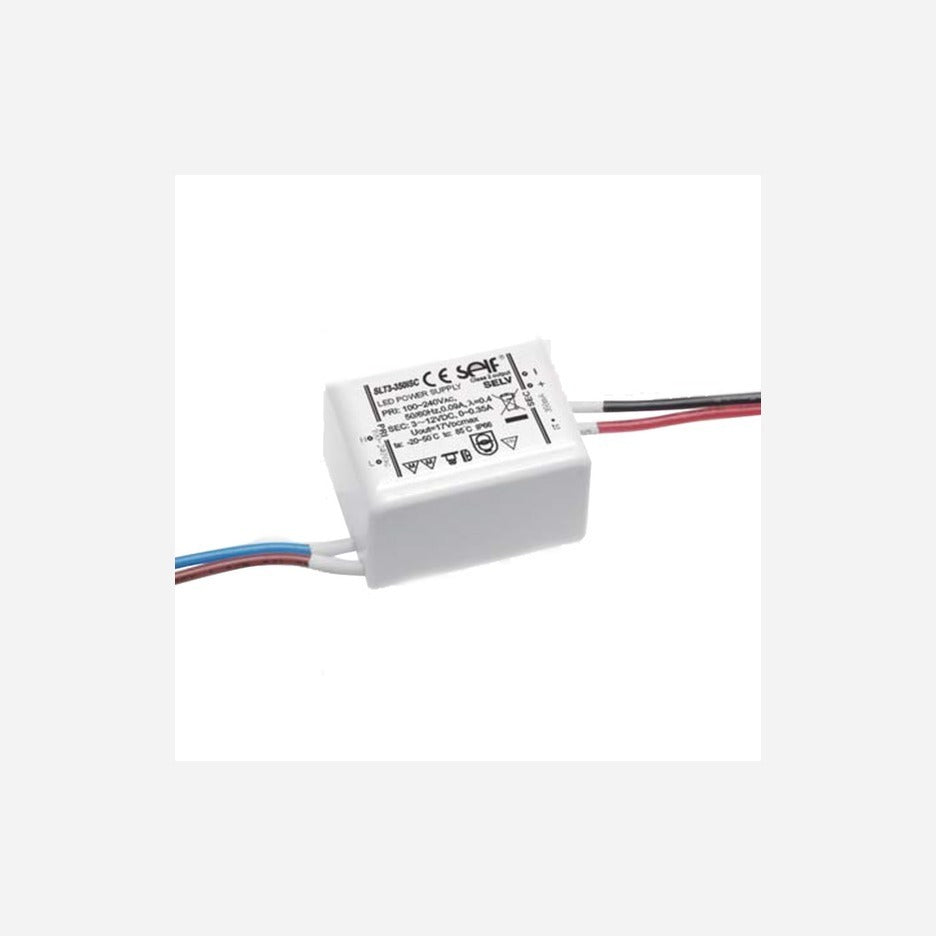

Form follows function: the unit is a small rectangular block with rounded corners and a matte white plastic casing. Four insulated wire leads identify input and output conductors — blue and brown for incoming mains, red and black for the low-voltage LED output — simplifying hardwired installation into slim fittings.

The housing is fully sealed and tamper‑resistant, with clear technical printing on the top surface. Safety markings include the CE mark, SELV designation, double insulation and thermal protection symbols, and the product carries a three‑year warranty from the manufacturer.

Electrically the driver accepts 100–240V AC at 50/60Hz and delivers a constant current of 350mA to a 3–12V DC secondary. That constant‑current output makes it suitable for driving compatible low‑voltage LED modules where a regulated 350mA supply is required; its compact form factor is especially useful for narrow or shallow luminaire housings.

Installation is by hardwiring the supplied leads into the fixture or enclosure; the sealed IP66 rating supports use in damp or exposed locations where an IP66 driver is specified. As an integrated electronic component, it is supplied as the driver itself and does not include lamps.

At Lighting Design Online we position this Astro driver as a practical component for considered lighting schemes where space, durability and regulatory compliance matter. We provide clear technical guidance and project‑friendly detail so you can specify with confidence, ensuring the right outcome for both aesthetic and functional requirements.

FAQs

What are the input and output electrical specifications?

Input is 100240V AC at 50/60Hz. Output is 312V DC at a constant 350mA.

How is the driver installed?

The unit is hardwired via four insulated leads: blue and brown for mains input, red and black for lowvoltage output, intended for integration within fixtures or enclosures.

Is this driver suitable for damp or exposed locations?

Yes. The driver has an IP66 sealed housing suitable for installations where an IP66 rating is required.

What safety approvals and protections are included?

Labeling shows CE compliance, SELV rating, double insulation and thermal protection. The product also carries a threeyear manufacturer warranty.

Does the product include lamps or fittings?

No. This product is the LED driver only and does not include lamps or light fittings.
