Node Lighting

Node Lighting LED Profile Profile Kit

Name: Node Lighting LED Profile Profile Kit
Brand: Node Lighting
SKU: 20210274
Price: 74.0 GBP
Availability: InStock

£74.00 GBP

£74.00 GBP ~~£74.00 GBP~~

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

20210274

Node Lighting LED Profile Profile Kit

£74.00 GBP

Ground-recessed anodised aluminium profile kit for LED strips, with opal diffuser, end caps and brackets. IP65 rated for protected installations.

Create discreet recessed linear illumination
House LED tape securely in central channel
Include 2m anodised aluminium channel and diffuser
Provide IP65 protection for exposed locations
Fit with supplied end caps and mounting brackets

Node Lighting LED Profile Profile Kit is a ground-recessed LED profile from the LED Profile range by Node Lighting. The kit is supplied as a linear aluminium channel intended to house LED strip lighting and create a neat, recessed run of light suitable for architectural details and accent runs.

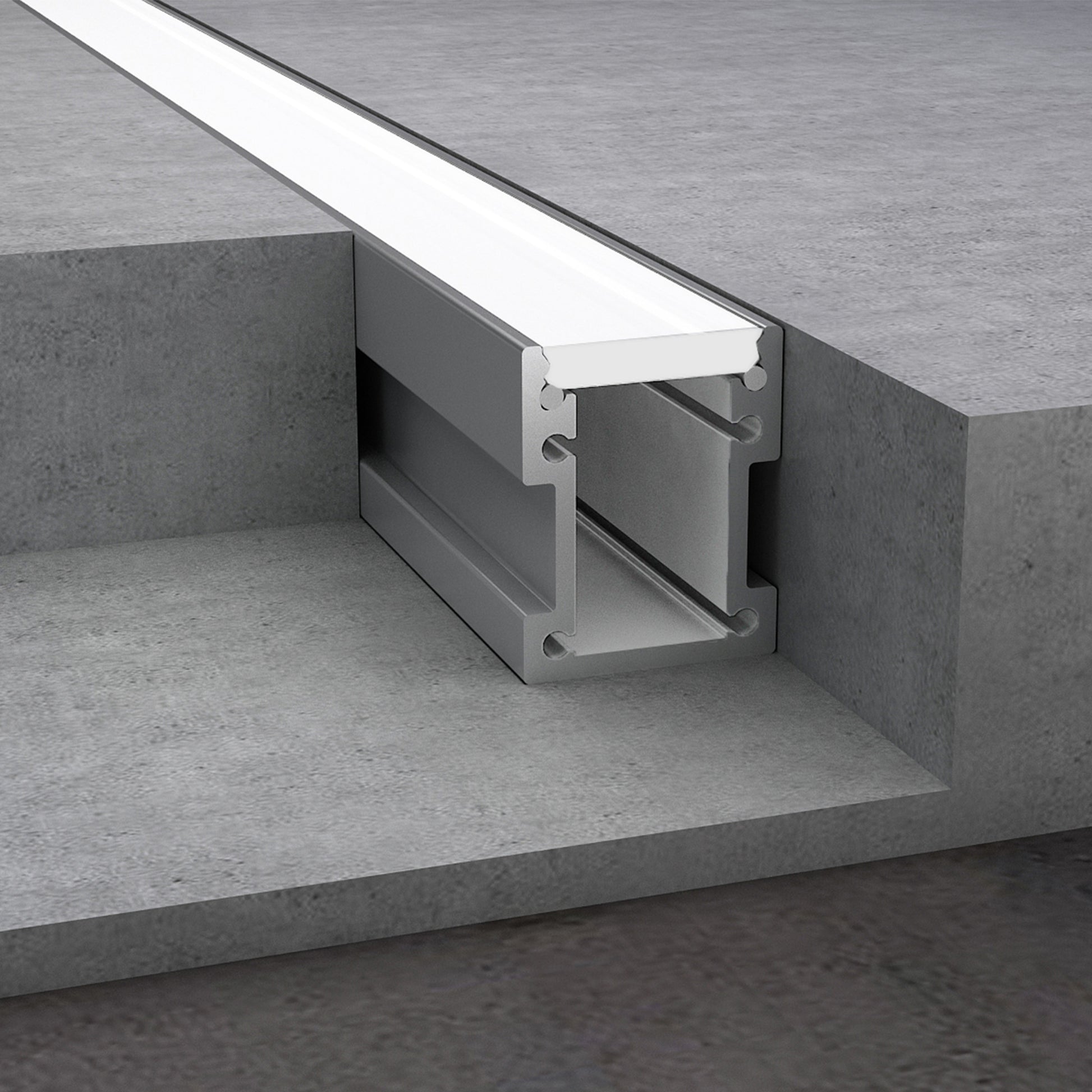

The profile has a slim, rectangular geometry with longitudinal grooves and a central U-shaped channel to accept LED tape; the kit includes a 2m anodised aluminium channel, 2m opal diffuser, two end caps and four mounting brackets. The opal diffuser snaps into the profile to soften and homogenise the light, helping to reduce visible LED points and improving balance across the run.

Constructed from anodised aluminium, the extrusion acts as both a protective housing and a heat sink for LED strips, while the opal diffuser is designed to provide controlled diffusion and reduce glare. The profile’s flat base and included brackets make for stable recessed mounting in linear runs.

Light delivery is linear and directional along the length of the channel; the central channel is intended for standard LED tape installations so you can achieve discreet accent or pathway illumination with reduced shadowing and consistent ambience. The diffuser produces a softened light output suitable for integration into cabinetry, floors or architectural reveals.

The kit is specified with an IP65 rating, providing protection for installations where water jets or outdoor exposure to weather are a consideration; the ground-recessed design suits applications that need a robust, sealed linear solution. Note which LED tape, driver or dimming system you plan to use so they integrate correctly with the channel and diffuser.

At Lighting Design Online we frame this profile as a practical way to achieve considered linear lighting without guesswork. The Node Lighting LED Profile Profile Kit gives clarity in specification, project-friendly components for straightforward installation and the durable materials to deliver long-term performance and professional assurance.

Dimensions

Weight (kg): 1.16
Length (cm): 200
Height (cm): 2.7
Width (cm): 2.14

Certifications & Ratings

Product warranty: 5 Years Warranty
IP rating: IP65
CE (EU directive) compatible?: Yes

Node Lighting

UK Lighting

Node Lighting, based in Northern Ireland, specialises in architectural LED solutions that favour clear, functional design and durable materials. The LED Profile range demonstrates a practical approach: anodised aluminium extrusions that act as discreet housings and heat sinks, paired with diffusers that reduce glare and provide even, balanced illumination. Nodes products suit considered interiors and projects where longevity and specification clarity matter, and are supported with a 5 Years Warranty for professional reassurance.

Visit Node Lighting

Manufacturer Part Numbers

LS-PRO-G-21-26-2000

FAQs

What components are included in the kit?

Supplied with a 2m anodised aluminium channel, 2m opal diffuser, two end caps and four mounting brackets.

Is the profile suitable for outdoor or ground-recessed use?

The product is described as ground-recessed and carries an IP65 rating, offering protection appropriate for exposed or damp locations where IP65 is sufficient.

What type of LED source fits this profile?

The central U-shaped channel is designed to accommodate standard LED strip (tape) lighting; check strip width against the channel dimensions before ordering.

Are LED tape and driver included?

The product data lists the channel, diffuser, end caps and brackets. LED tape and driver are not specified as included and should be confirmed separately.
