Handrail integrated led lighting

Handrail integrated led lighting

Installing LED strips under the handrail creates a continuous ribbon of light that follows the stair ascent while illuminating treads from the side. This technique is particularly effective on open staircases and creates a sleek, modern appearance. The handrail conceals the light source, preventing glare.

Complex Premium
Approach Detail

Mount LED strip on the underside of the handrail, using an aluminum channel for heat dissipation and clean lines. Position strip on the room-facing side (not wall side) to maximize tread visibility. Use warm white (2700-3000K) LEDs. Connect to dimmer for flexibility. Ensure seamless joints at corners and landings. Consider motion activation for automatic operation.

Key Fixtures

LED strip lighting; aluminum strip channels; under-rail mounting brackets; motion sensor integration; custom handrail extrusions with LED channels

Designer Notes

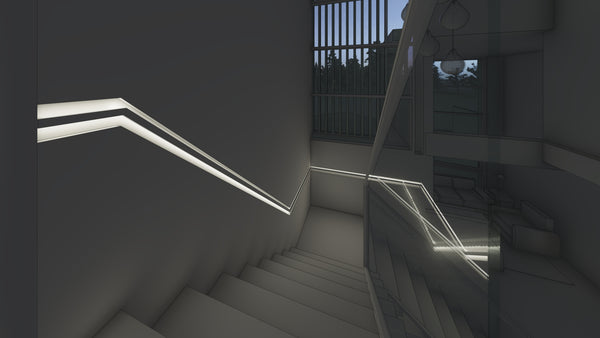

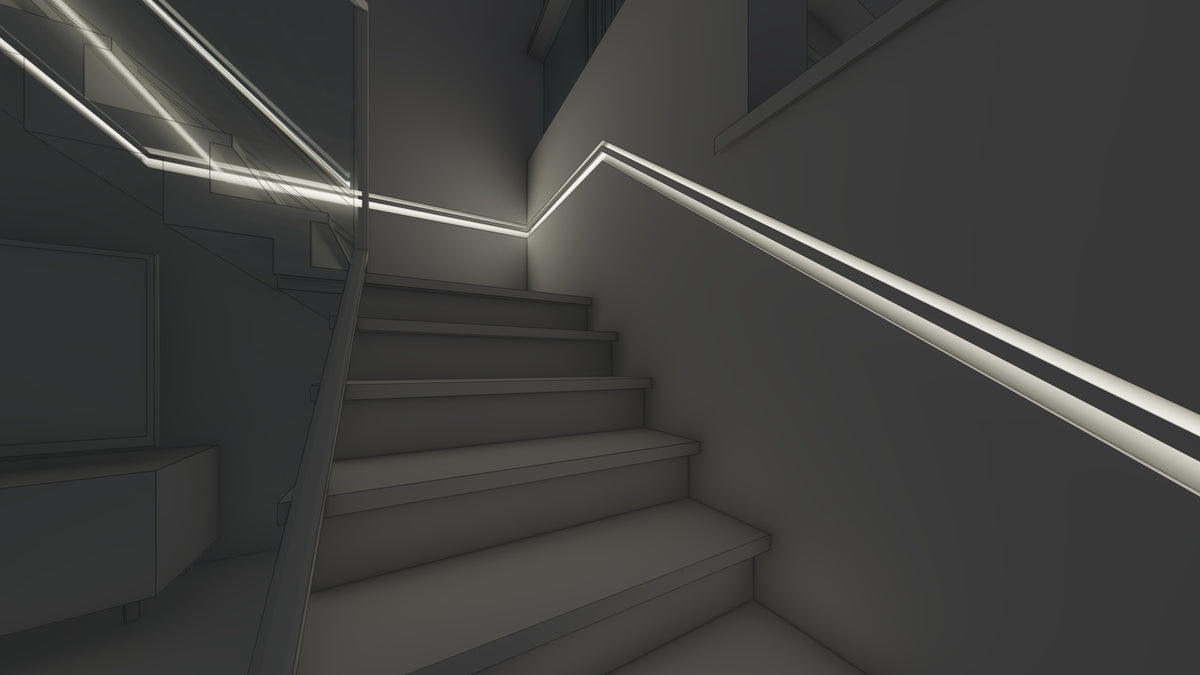

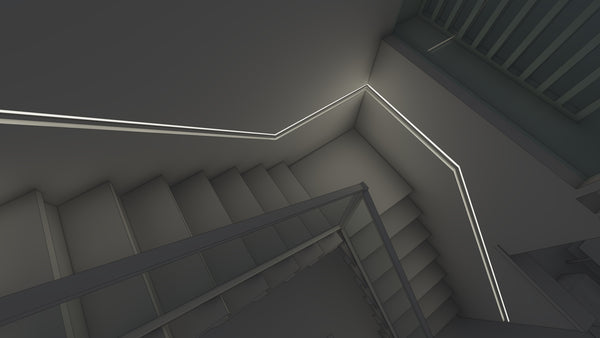

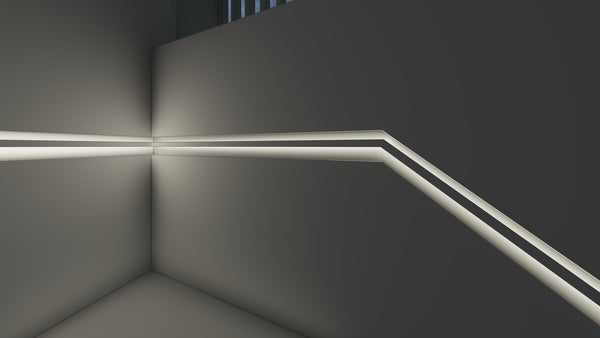

View of staircase with handrail LED illumination visible. Show the continuous light ribbon following handrail path. Display treads visible in ambient light from handrail. Modern stair design—perhaps floating treads, glass balustrade. Evening scene. Emphasize the sleek, integrated aesthetic. Show multiple flights if stair turns.

Best For
Modern and contemporary staircases; open stair designs; floating stairs; glass or cable railings; design-conscious homeowners wanting integrated solutions.
Gallery
