Image shown is representative. Selected variant: Default Title

Astro

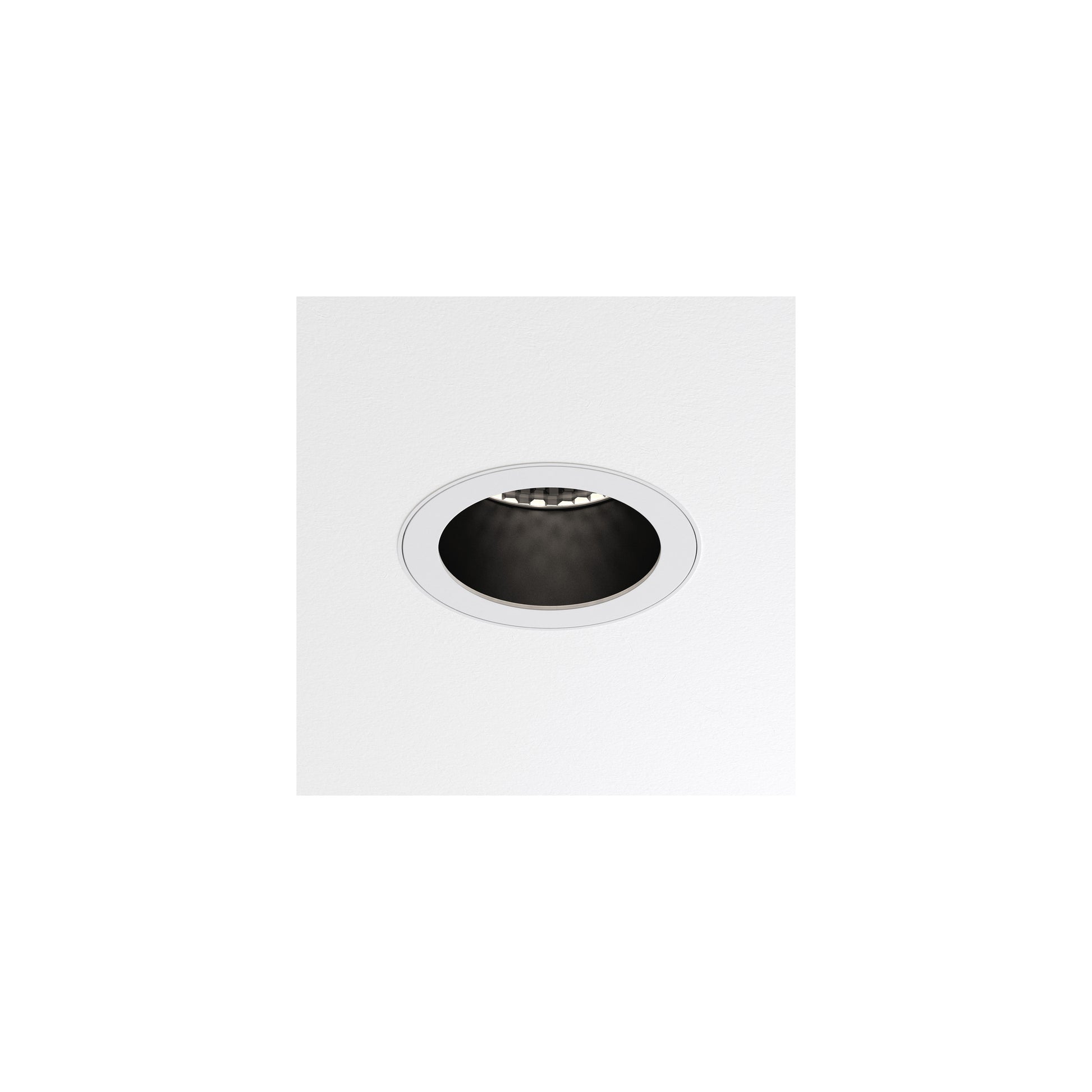

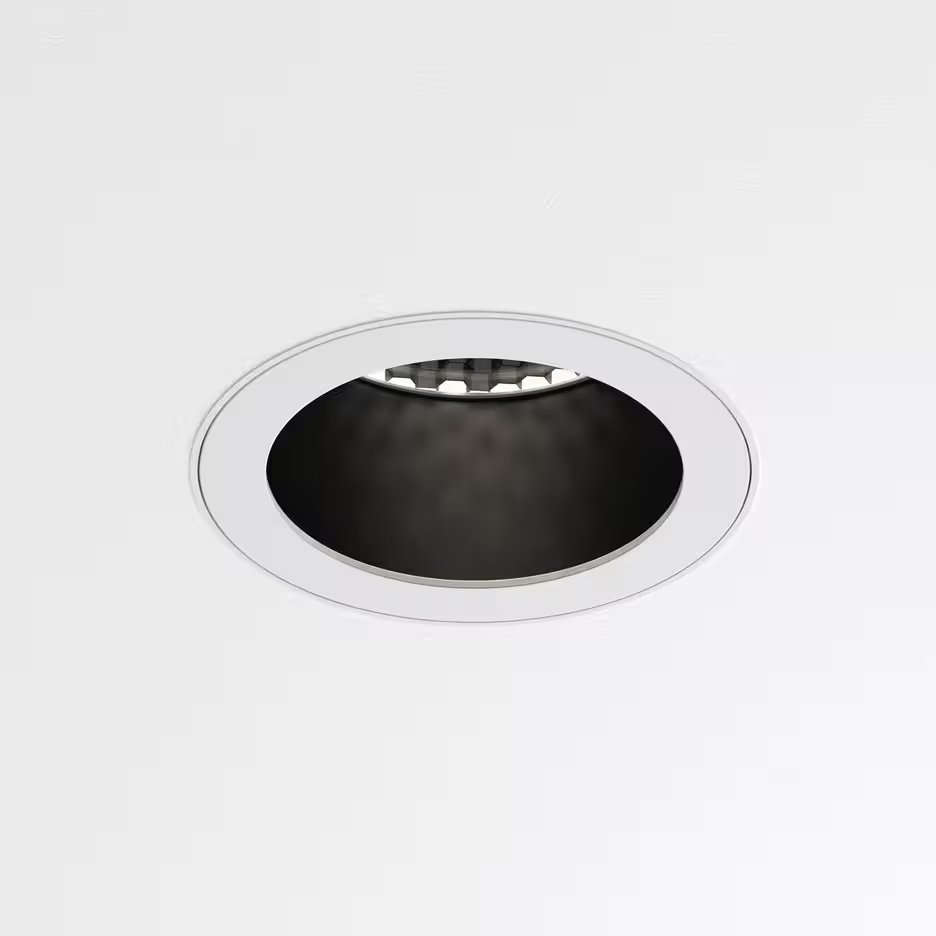

Astro Pinhole Recessed Downlight

£50.00 GBP
£50.00 GBP £50.00 GBP
Tax included. Shipping calculated at checkout.

20203600
Astro Pinhole Recessed Downlight

£50.00 GBP

Trimless Pinhole recessed downlight with matt-white flush rim and deep black baffle. Fire-rated IP65; fixed GU10 lamp (max 6W); install before plaster skim.

  • Minimise glare with deep-set pinhole baffle

  • Achieve a trimless finish before plaster skim

  • Use 1 x GU10 LED lamp (max 6W)

  • Specify a fire-rated, IP65 protected fitting

  • Keep a minimal, flush ceiling footprint

Dimensions

  • Weight (kg): 0.37
  • Recessed depth (cm): 15
  • Cut-out diameter (mm): 62
  • Height (cm): 6.9
  • Diameter (cm): 5.8

Functionality

  • Materials-specific: Metal
  • Operating voltage: 230/240V
  • Includes bulbs: No

Certifications & Ratings

  • Recommended application surface: Ceiling
  • Product warranty: 3 years
  • IP rating: IP65
  • CE (EU directive) compatible?: Yes
  • Safety classification: Class II
  • Interior / exterior restrictions: Suitable for Both Interior and Exterior Use

Manufacturer Part Numbers

1434007

FAQs

Does this fitting require trimless installation?
Yes. The Pinhole must be installed before the final plaster skim; follow the installation guide for correct mounting.

What lamp and power rating does it accept?
It accepts 1 x GU10 LED lamp, maximum 6W. Options include 24 and 40 beam modules and 2700K or 3000K colour temperatures with 90CRI where specified.

Is the downlight adjustable?
No. The Pinhole is a fixed-position downlight and cannot be tilted after installation.

What does IP65 and fire-rated mean for location use?
IP65 provides protection against dust and low-pressure water jets; the fitting is also fire-rated. Check local regulations and installation guidance for bathroom or external use.

Is an external driver required for this fitting?
No external driver is required when using GU10 LED lamps, as the lamp contains its own electronics. Dimming depends on the chosen GU10 lamp and dimmer compatibility.
