Osram

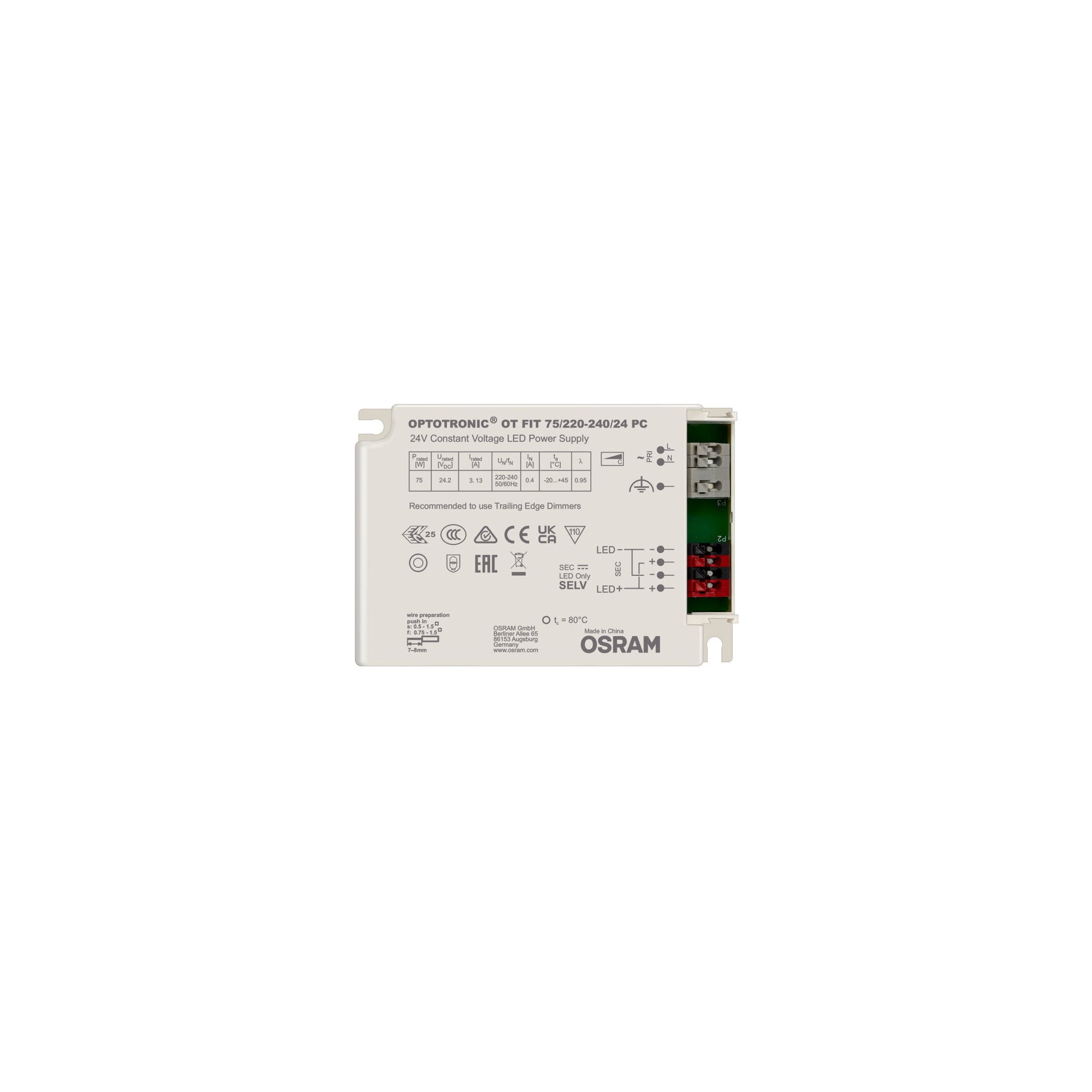

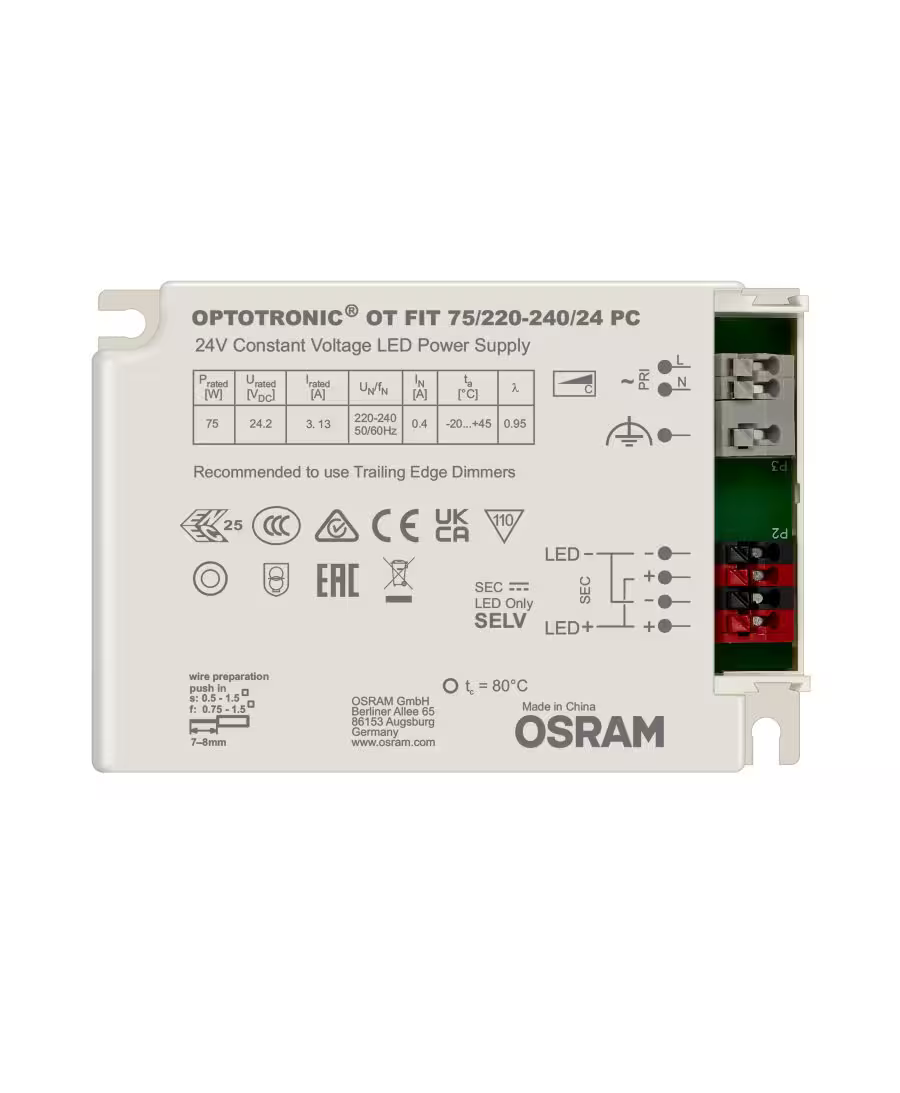

Osram Phase Cut Dimmable 24V LED Driver

£43.10 GBP
£43.10 GBP £43.10 GBP
Tax included. Shipping calculated at checkout.

20210431
Osram Phase Cut Dimmable 24V LED Driver

£43.10 GBP

24V constant-voltage Osram driver, 75W output and trailing-edge dimmer compatible. Indoor use (IP20) with integrated mounting tabs and clear wiring guidance.

  • Provide 24V constant-voltage output

  • Deliver up to 75W regulated power

  • Work with trailing-edge dimmers

  • Mount securely using integrated tabs

  • Follow printed 7–8mm wire guide

  • Meet ENEC, CE and UKCA compliance

Dimensions

  • Weight (kg): 0.58
  • Length (cm): 17
  • Height (cm): 3.0
  • Width (cm): 7.6

Functionality

  • Materials-specific: Plastics / Acrylics / Etc.
  • Operating voltage: 220-240V

Certifications & Ratings

  • Product warranty: 3 - 10 years, depending on the product
  • IP rating: IP20
  • CE (EU directive) compatible?: Yes
  • Safety classification: Class II
  • Interior / exterior restrictions: Interior Use Only

Manufacturer Part Numbers

4062172237413

FAQs

Is this driver dimmable?
Yes. The housing states compatibility with trailing-edge (phase-cut) dimmers.

What output and power does the driver provide?
It supplies a constant 24.2V DC output with a rated power of 75W for 24V LED loads.

How should the unit be wired and mounted?
Primary input terminals are marked L, N and earth; secondary terminals provide two +/ LED outputs. Use the printed wire preparation guide (78mm) and the integrated mounting tabs for secure installation.

Where can this driver be installed?
With an IP20 rating and an ambient range of 20C to +45C, it is intended for indoor, dry locations only.

Which safety and regulatory marks does it carry?
The unit carries ENEC, CE, UKCA, CCC and EAC marks and is designated SELV for extra-low-voltage safety.
