Osram Phase Cut Dimmable OT FIT 150/220-240/24 PC LED Driver

£73.00 GBP
£73.00 GBP £73.00 GBP
Tax included. Shipping calculated at checkout.

20210432

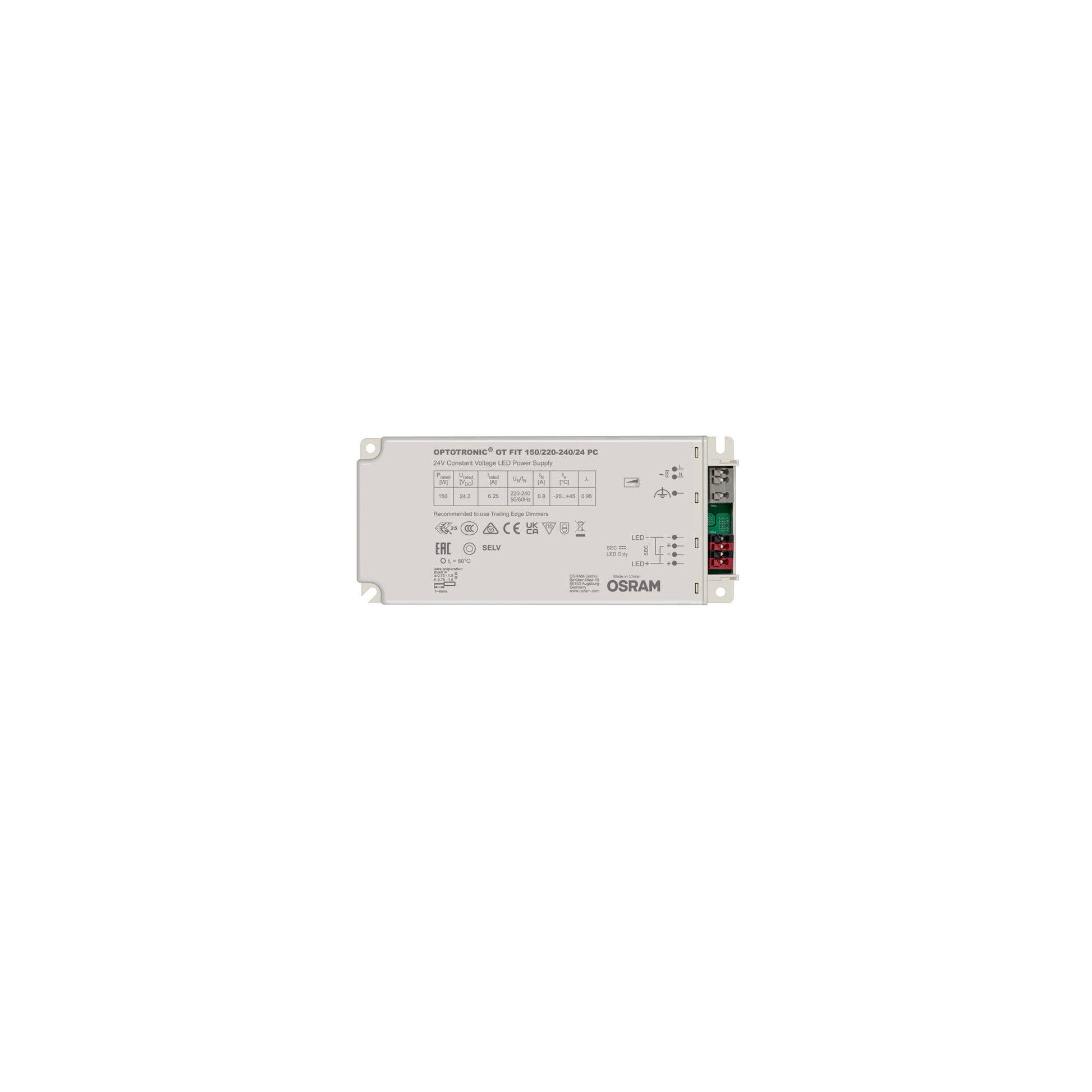

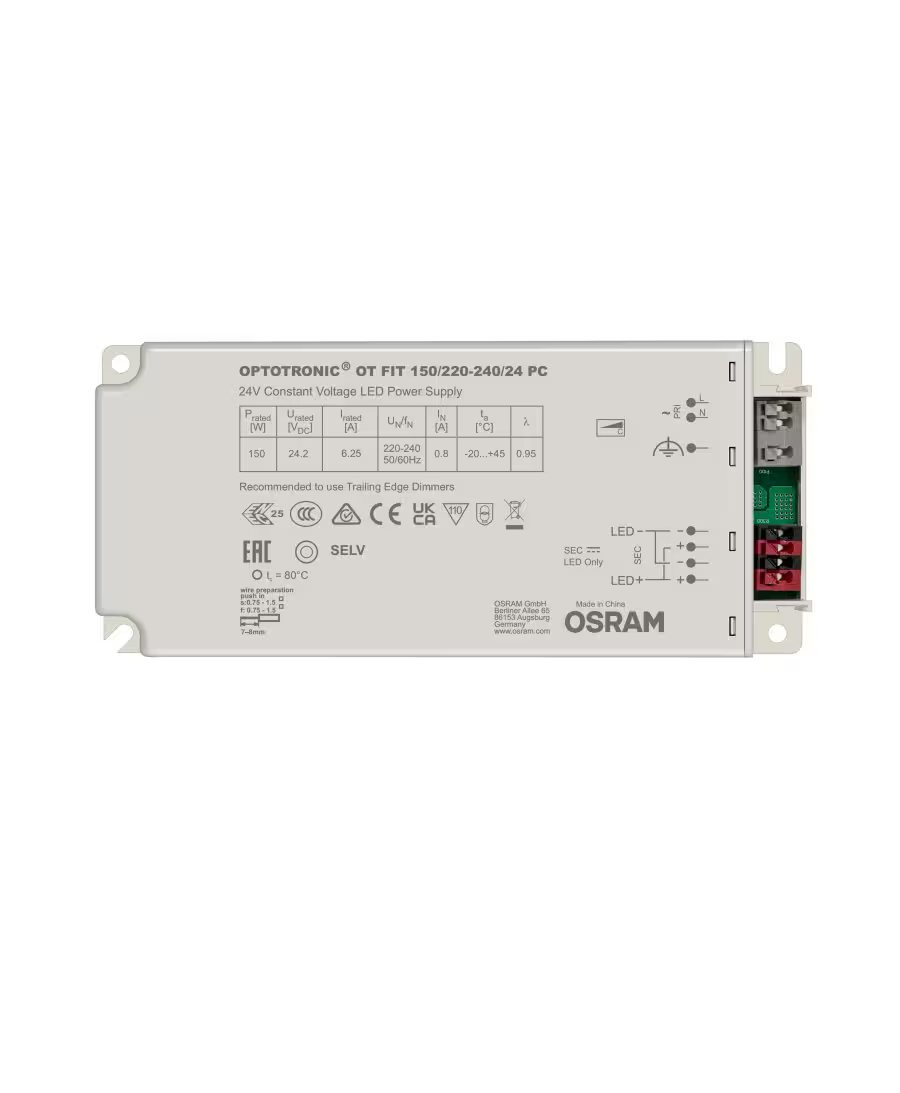

Osram Phase Cut Dimmable OT FIT 150/220-240/24 PC LED Driver

£73.00 GBP

150W Osram constant-voltage LED driver, 24.2V DC output; phase-cut dimmable with push‑in terminals and four mounting holes. IP20 for indoor use.

  • Provide stable 24.2V DC at 150W

  • Support trailing-edge dimmers for dimming

  • Use push-in terminals for quick wiring

  • Mount to flat surfaces via four fixing holes

  • Meet SELV, CE, UKCA and EAC safety marks

Dimensions

  • Weight (kg): 0.58
  • Length (cm): 17
  • Height (cm): 3.0
  • Width (cm): 7.6

Functionality

  • Materials-specific: Plastics / Acrylics / Etc.
  • Operating voltage: 220-240V

Certifications & Ratings

  • Product warranty: 3 - 10 years, depending on the product
  • IP rating: IP20
  • CE (EU directive) compatible?: Yes
  • Safety classification: Class II
  • Interior / exterior restrictions: Interior Use Only

Manufacturer Part Numbers

4062172237642

FAQs

What output voltage and power does this driver provide?
The OT FIT 150 supplies a regulated 24.2V DC output with a rated power of 150W.

Is the driver dimmable and which dimmers are compatible?
Yes. The unit is compatible with trailing-edge (phase-cut) dimmers for brightness control.

How are the electrical connections made?
Primary (L, N, PE) and secondary terminals are push-in style and clearly partitioned; wire strip length is specified as 78mm on the casing.

Where can this driver be installed and what is its IP rating?
This driver is IP20 and intended for indoor, dry-location installation; ensure adequate ventilation and follow the stated ambient temperature range of 20C to +45C.

Does the unit include lamps and what warranty applies?
No lamps are included. Warranty varies between 310 years depending on the product specification.
