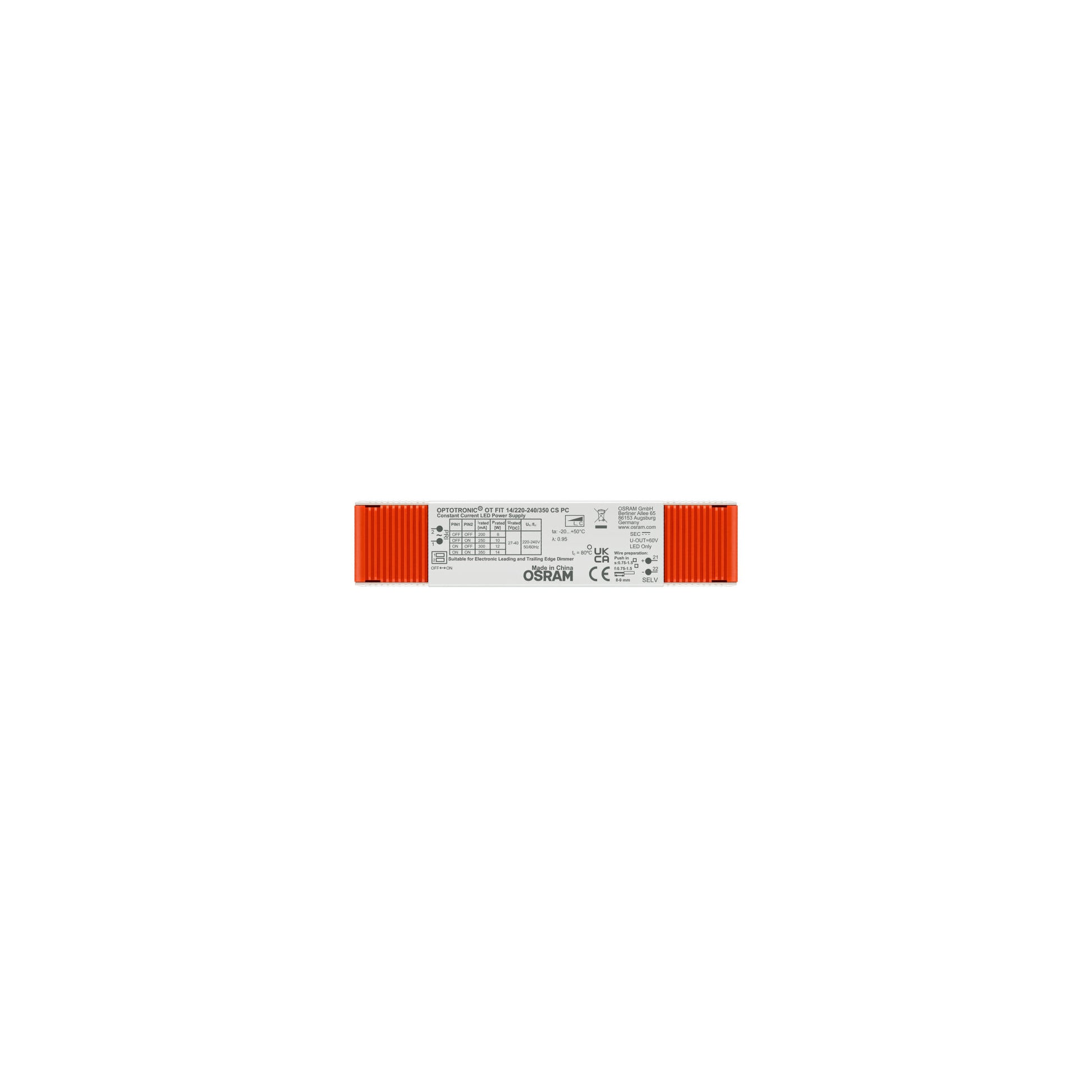

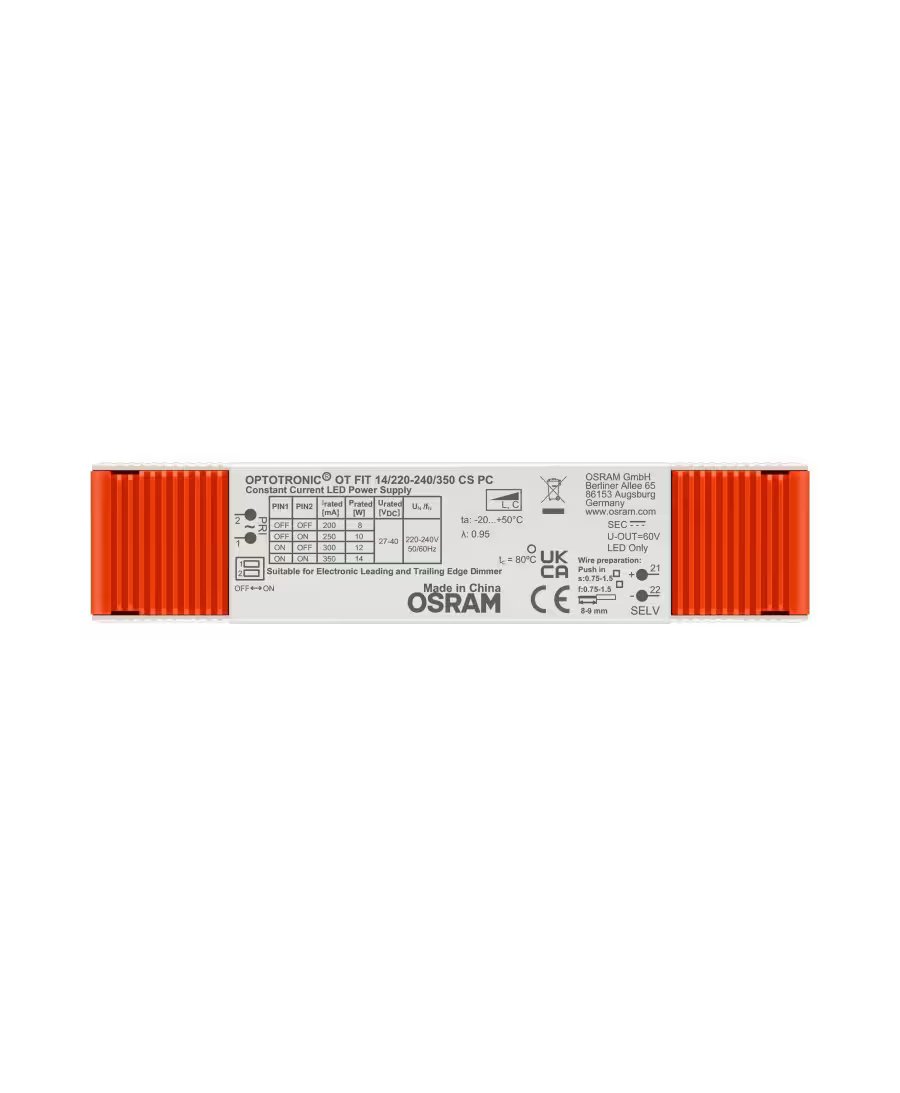

Image shown is representative. Selected variant: Default Title

Osram

Osram Phase Cut Dimmable LED Driver

£13.70 GBP
£13.70 GBP £13.70 GBP
Tax included. Shipping calculated at checkout.

20210434
Osram Phase Cut Dimmable LED Driver

£13.70 GBP

Compact constant-current LED driver with selectable 200–350mA outputs and phase-cut dimming; slim profile for narrow luminaires.

  • Select output current: 200, 250, 300, 350mA

  • Compatible with leading- and trailing-edge dimmers

  • Fits narrow luminaire housings with slim profile

  • Push-in terminals for 0.75–1.5 mm² conductors

  • Complies with CE, UKCA and SELV safety marks

Dimensions

  • Weight (kg): 0.06
  • Length (cm): 13
  • Height (cm): 2.2
  • Width (cm): 3.0

Functionality

  • Materials-specific: Plastics / Acrylics / Etc.
  • Operating voltage: 220-240V

Certifications & Ratings

  • Product warranty: 3 - 10 years, depending on the product
  • IP rating: IP20
  • CE (EU directive) compatible?: Yes
  • Safety classification: Class II
  • Interior / exterior restrictions: Interior Use Only

Manufacturer Part Numbers

4062172286503

FAQs

What output currents are available?
Output current is selectable to 200, 250, 300 or 350 mA using the internal DIP switches.

Does this driver support dimming?
Yes. The unit is compatible with electronic leading-edge and trailing-edge dimmers as stated on the label.

What mains supply does it require?
Designed for 220240 V AC at 50/60 Hz.

Which conductor sizes do the terminals accept?
Push-in terminals accept conductors from 0.75 to 1.5 mm; strip approximately 89 mm.

Can it be used outdoors or in bathrooms?
No. The IP20 rating means it is for dry, indoor locations only; the unit also carries SELV and double-insulation markings.
