Image shown is representative. Selected variant: Default Title

Osram

Osram Non Dimmable LED Driver

£15.40 GBP
£15.40 GBP £15.40 GBP
Tax included. Shipping calculated at checkout.

20210435
Osram Non Dimmable LED Driver

£15.40 GBP

Slim 60W 24V non-dimmable LED driver with high power factor and compact low-profile housing for constant-voltage LED systems.

  • Deliver stable 24V DC output

  • Support 60W constant-voltage loads

  • Achieve PF >0.95 at full load

  • Limit distortion to <15% THD

  • Mount securely with integrated fixing ears

  • Follow printed wiring diagram for installation

Dimensions

  • Weight (kg): 0.3
  • Length (cm): 20
  • Height (cm): 3.1
  • Width (cm): 4.0

Functionality

  • Materials-specific: Plastics / Acrylics / Etc.
  • Operating voltage: 220-240V

Certifications & Ratings

  • Product warranty: 3 - 10 years, depending on the product
  • CE (EU directive) compatible?: Yes

Manufacturer Part Numbers

4052899605527

FAQs

Is this driver dimmable?
No. This product is part of Osram's Non Dimmable range and is not intended for use with dimming systems.

What are the electrical input and output ratings?
The driver accepts 220240V AC input and provides a 24V DC constant-voltage output, rated to 60W.

What thermal and lifetime specifications should I consider?
Maximum case temperature (Tc max) is 85C; ambient range is -20C to +50C. Lifetime is up to 30,000 hours at Tc max or up to 50,000 hours at 10C below Tc max.

How are electrical connections made?

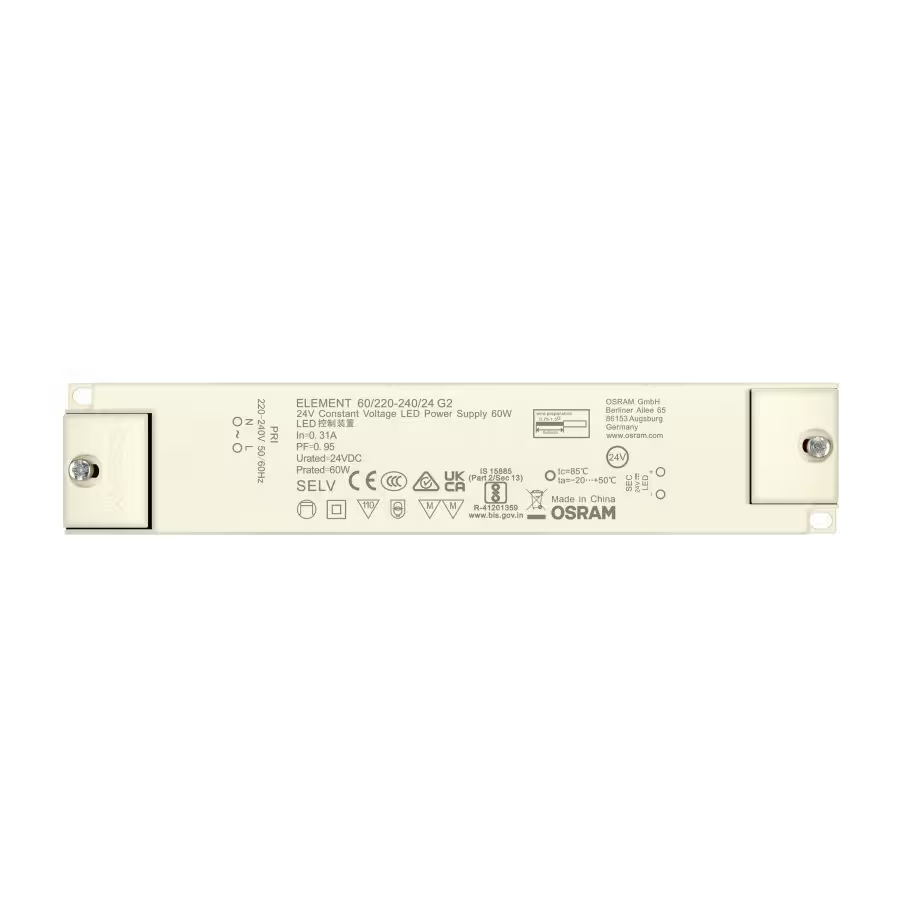

Primary terminals are marked L and N for mains input; secondary terminals are marked + and - for the 24V DC output. A wiring diagram is printed on the casing.

Which safety approvals does the unit carry?
The casing shows multiple approvals including SELV, CE, CCC, UKCA and BIS for international compliance.
