Osram

Osram 1-10V Dimmable LED Driver

£108.00 GBP
£108.00 GBP £108.00 GBP
Tax included. Shipping calculated at checkout.

20210468
Osram 1-10V Dimmable LED Driver

£108.00 GBP

Slim Osram 24V constant-voltage LED driver, dimmable (1–10V/DIM P) with pre-wired connectors and IP67 protection for tight installations.

  • Provide regulated 24V DC output

  • Enable dimming via DIM P (1–10V) control

  • Install easily with on‑chassis wiring diagram

  • Fit into slim luminaires and tight voids

  • Use in wet locations with IP67 protection

Dimensions

  • Weight (kg): 1.34
  • Length (cm): 26.5
  • Height (cm): 4.0
  • Width (cm): 6.8

Functionality

  • Materials-specific: Plastics / Acrylics / Etc.
  • Operating voltage: 220-240V

Certifications & Ratings

  • Product warranty: 3 - 10 years, depending on the product
  • IP rating: IP67
  • CE (EU directive) compatible?: Yes
  • Safety classification: Class I
  • Interior / exterior restrictions: Suitable for Both Interior and Exterior Use

Manufacturer Part Numbers

4052899545908

FAQs

What output voltage does this driver provide?
This Osram unit is a constantvoltage driver that provides a regulated 24V DC output.

Is the driver dimmable and which control method does it use?
Yes. It is dimmable and designated DIM P, compatible with 110V control systems.

What does the IP67 rating mean for installation?
IP67 indicates the unit is dusttight and protected against temporary immersion; it is suitable for exposed or damp locations when installed per guidance.

How are the output wires identified?

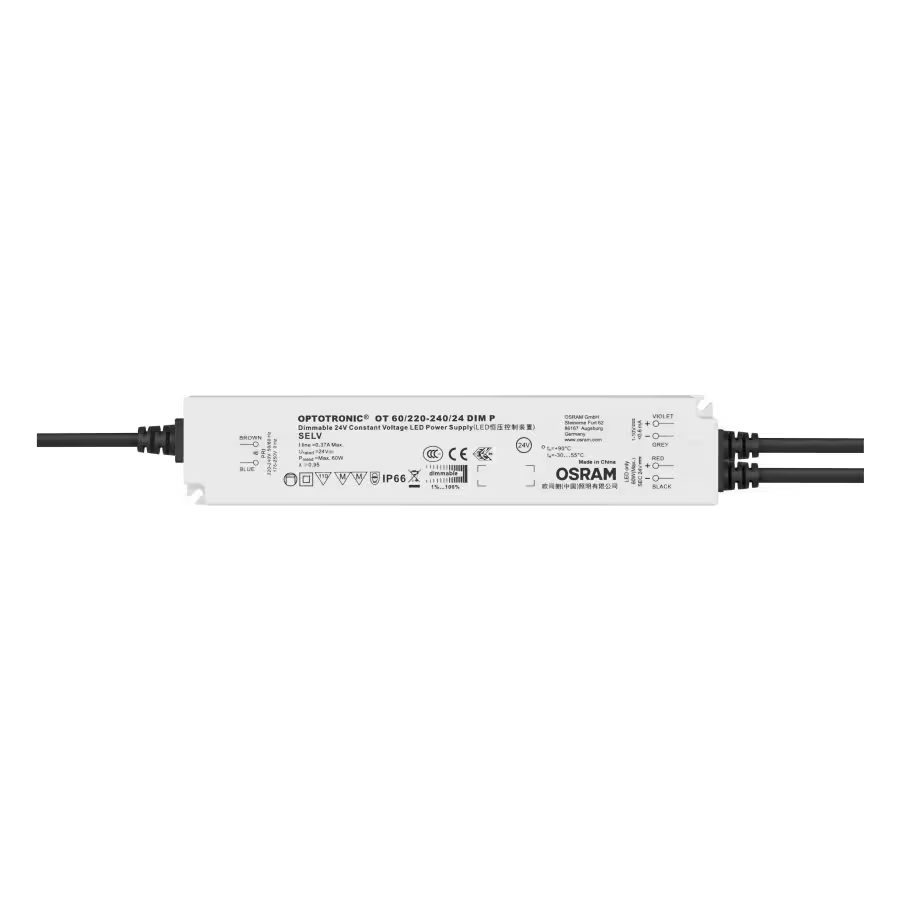

Output wiring is colourcoded on the chassis: Violet and Red for positive (+), Grey and Black for negative ().

What safety markings and certifications does it carry?
The chassis is printed with CE, SELV and the doubleinsulation symbol for quick compliance verification.
