Nordlux

Nordlux Track X-Connector

Name: Nordlux Track X-Connector
Brand: Nordlux
SKU: 16048611
Price: 28.0 GBP
Availability: InStock

£28.00 GBP

£28.00 GBP ~~£28.00 GBP~~

Tax included. Shipping calculated at checkout.

16048611

Nordlux Track X-Connector

£28.00 GBP

Low-profile X-connector for four-way Link track junctions; joins and supplies power across intersecting runs. Available in Black and White.

Join four track runs at a 90° intersection
Maintain electrical continuity across junctions
Blend into schemes with matte Black or White
Secure each arm with a locking screw
Install into Link system end caps

The Nordlux Track X-Connector is a purpose-made lighting accessory that joins four sections of track at 90° intersections. Designed for Link system installations, it provides a neat, low-profile junction that carries both the structural load and the electrical circuit across perpendicular runs.

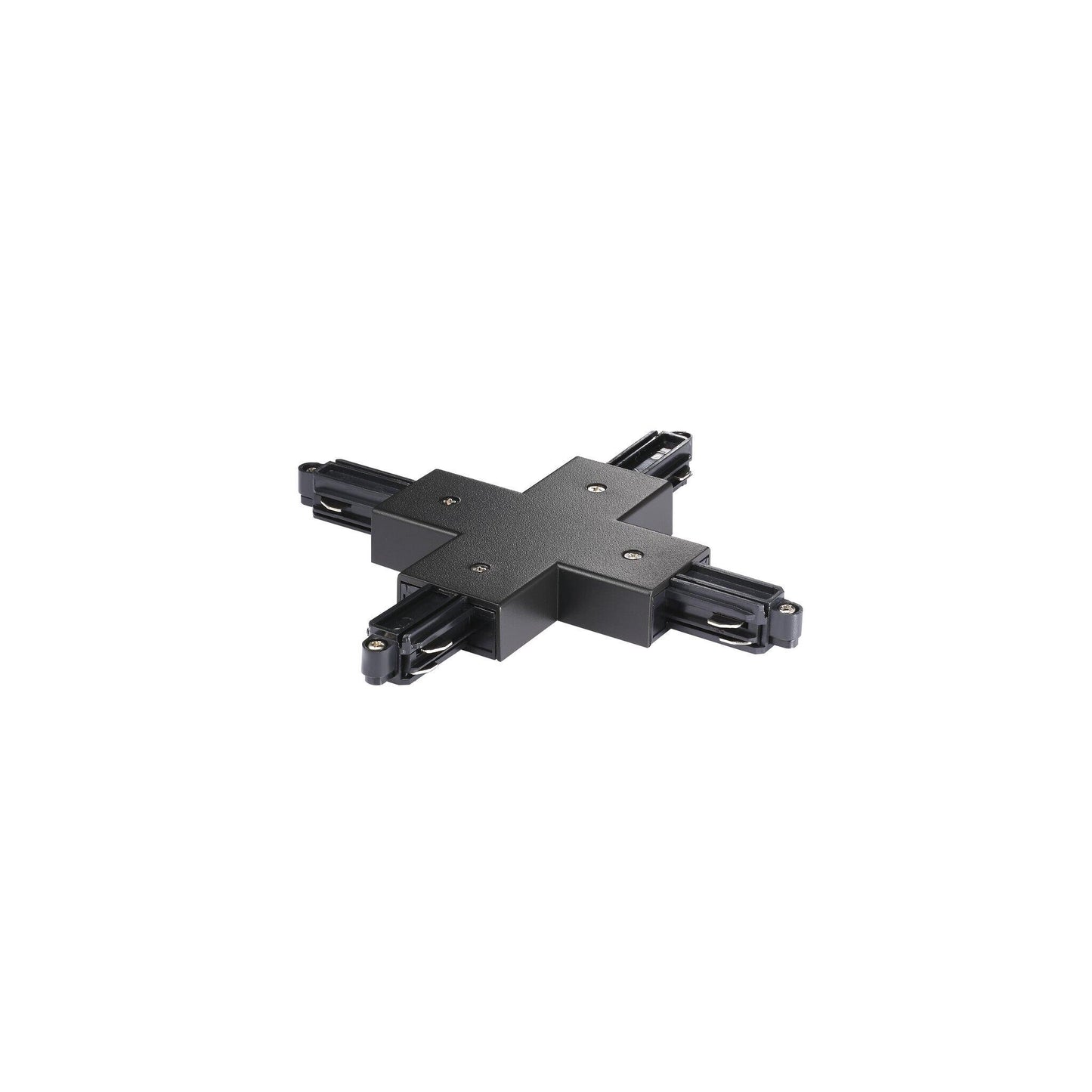

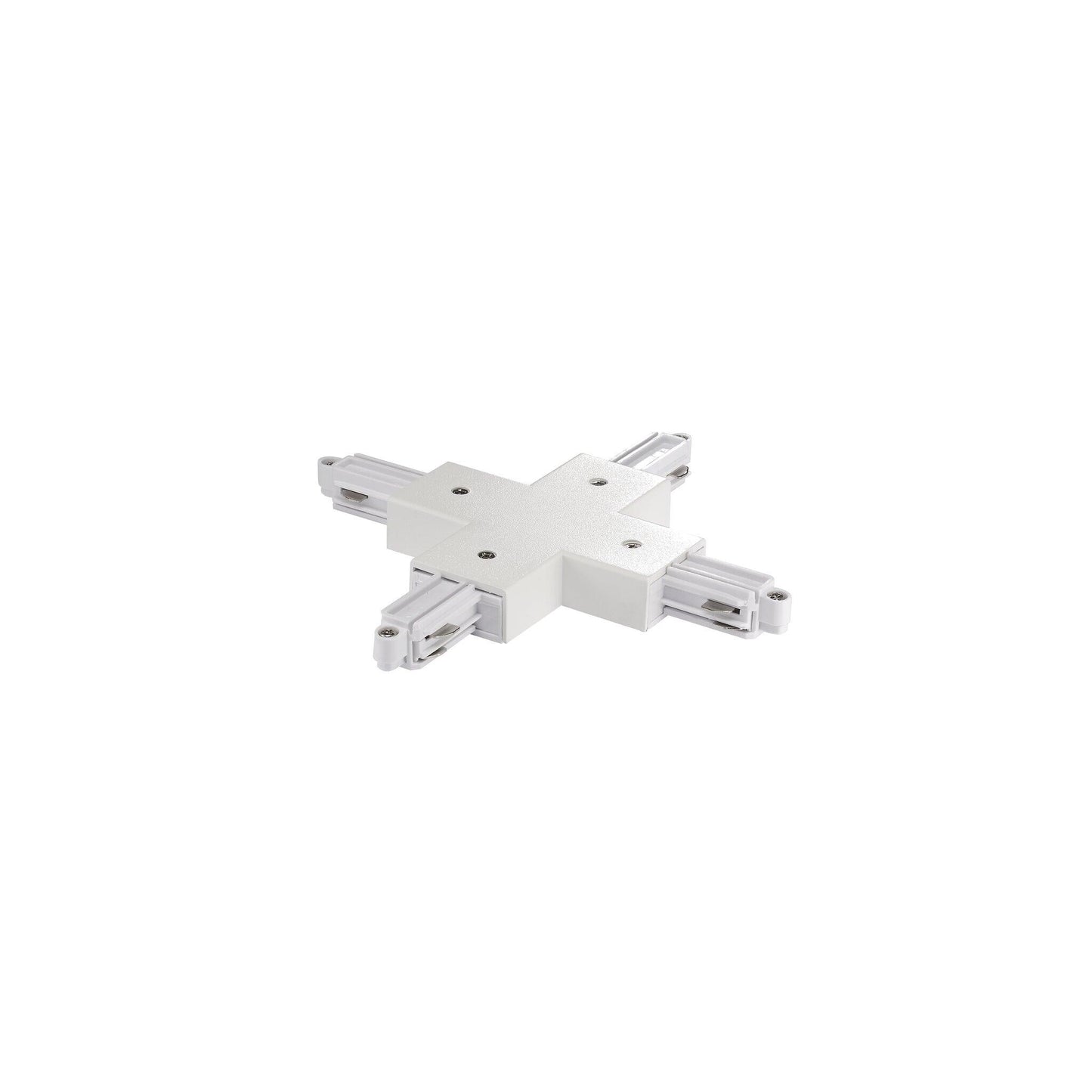

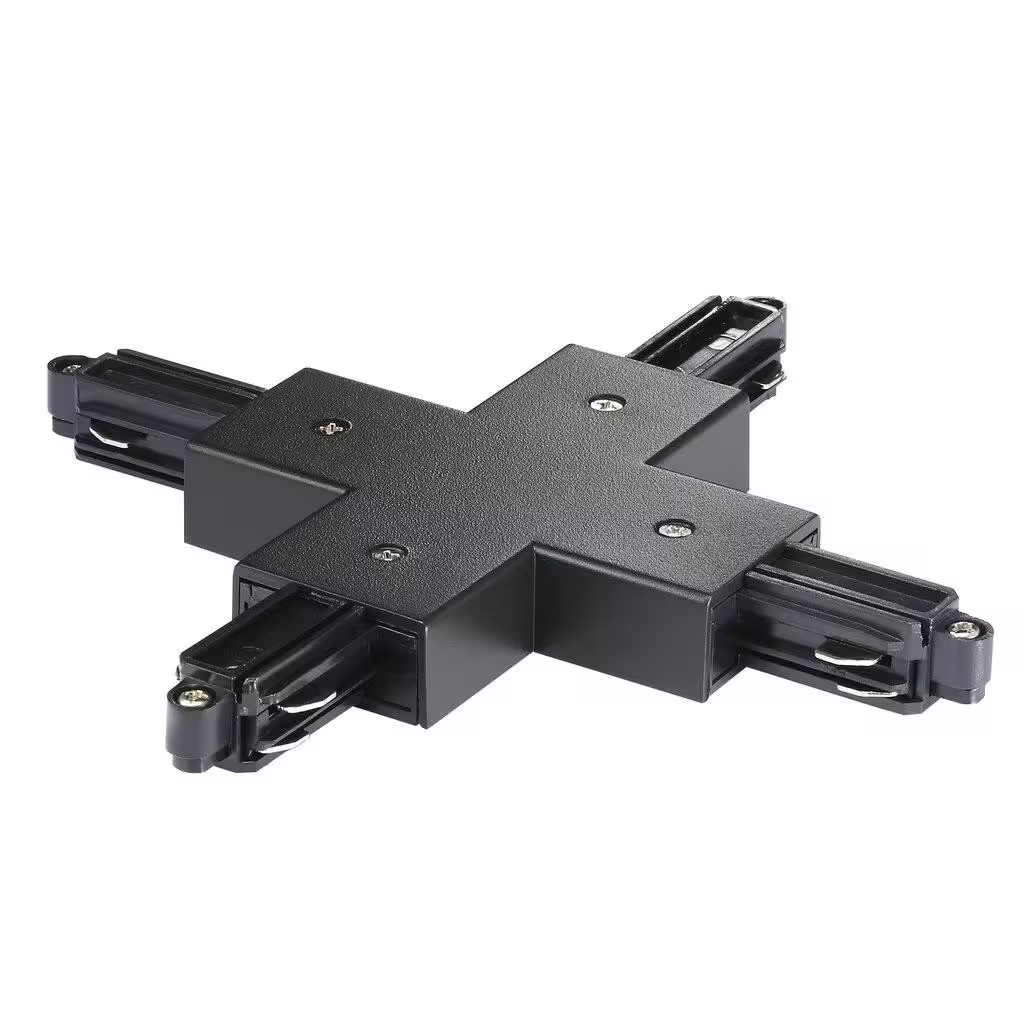

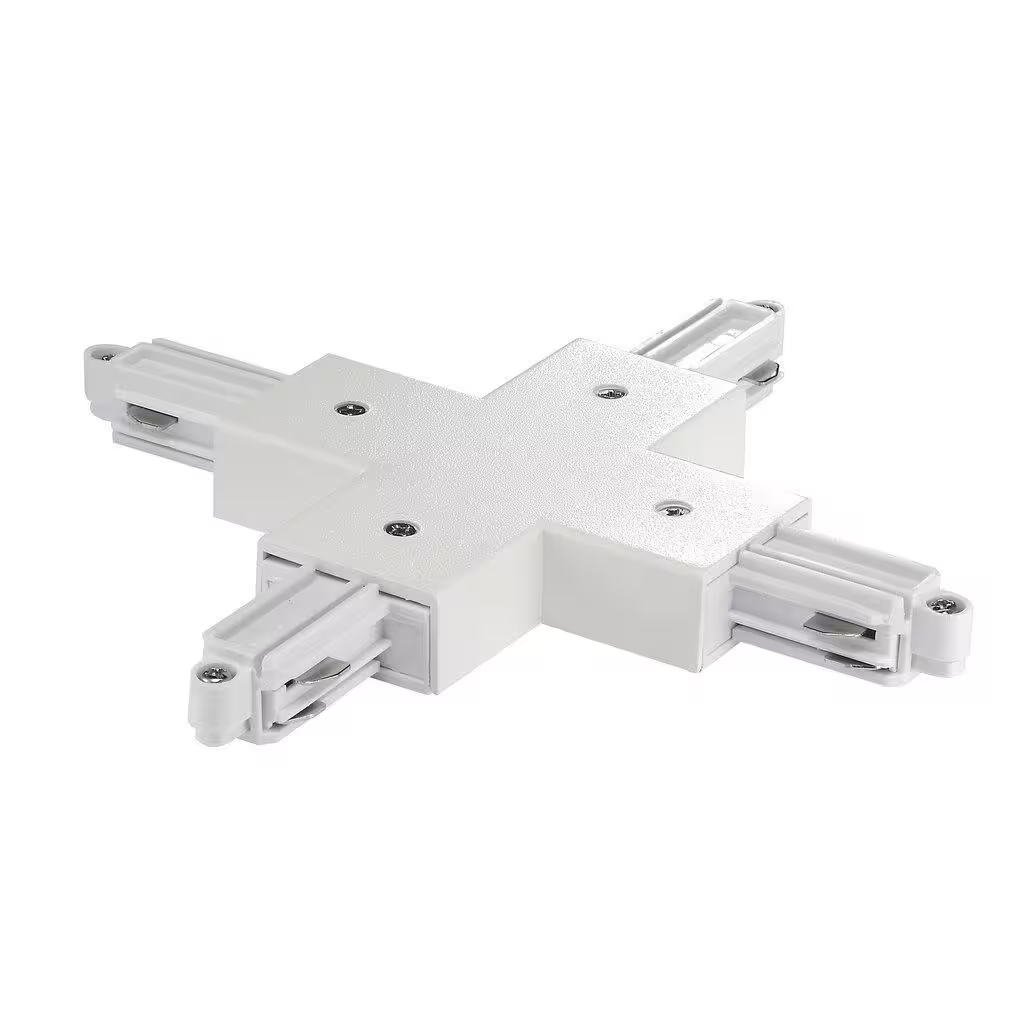

The connector has a cross-shaped configuration with four arms extending from a central square hub. It is offered in Black and White finishes to match common track systems and to blend with surrounding fittings.

The central hub is secured with four small Phillips-head screws and each arm contains internal metal contact plates to maintain electrical continuity. Male-style connector arms slide into compatible track ends and a small securing screw at the tip of each arm locks the unit into the rail.

Functioning as both a mechanical join and an electrical bridge, the X-Connector allows power to pass between four connected track segments, enabling modular grid and intersecting layouts. Its low profile and uniform finish help maintain a cohesive appearance across the track run.

Install the connector at the rail end caps of compatible Link track profiles, and tighten the securing screws to lock each arm in place. This product is an accessory only; track heads, lamps, drivers or transformers are not included. Manufacturer warranty varies between 2–15 years depending on the specific Nordlux product terms.

Lighting Design Online recommends this connector when planning considered, grid-style track arrangements. We provide design-led guidance to ensure the junction is specified and installed correctly, backed by quality assurance and project-friendly support so your track scheme performs reliably and looks resolved.

Dimensions

Weight (kg): 0.133
Length (cm): 17.2
Height (cm): 1.8
Width (cm): 17.2

Functionality

F-norm rated: No
Cable excluded?: No

Certifications & Ratings

Product warranty: 2-15 years
CE (EU directive) compatible?: Yes
Safety classification: Class I

Nordlux Lighting

Danish Lighting

Nordlux is a Danish lighting maker known for practical, well-considered products that support contemporary interiors. Rooted in Scandinavian clarity, their approach emphasises purposeful form and reliable engineering rather than decorative excess. Components such as this X-connector reflect that intent: functional construction, clean finishes and compatibility with modular track systems. Designers choose Nordlux when they need straightforward, durable fittings that help create a controlled, cohesive lighting scheme.

Visit Nordlux Lighting

Manufacturer Part Numbers

Black	86079903
White	86079901

FAQs

What does the Nordlux Track X-Connector do?

It joins four sections of Link track at a 90 intersection, acting as both a structural join and an electrical bridge so power continues across all runs.

Which finishes are available?

The connector is available in Black and White to match common track finishes.

How is the connector installed and secured?

Male-style connector arms slide into compatible track ends and a small securing screw at each arm tip locks the component. The central hub is fastened with four Phillips-head screws.

Does the connector include lamps, drivers or track heads?

No. This product is an accessory only; lamps, drivers, transformers and track heads are supplied separately.
