Node Lighting LED Profile Corner Profile Kit

£19.20 GBP

£19.20 GBP ~~£19.20 GBP~~

Tax included. Shipping calculated at checkout.

20210275

Dimensions

Weight (kg): 0.297
Length (cm): 200
Height (cm): 1.6
Width (cm): 1.6

Certifications & Ratings

Product warranty: 5 Years Warranty
CE (EU directive) compatible?: Yes

DELIVERY & RETURNS

Please review our Shipping and Returns policies to learn how your order will arrive to your project.

We gladly offer our guests up to 30 days from delivery to return or exchange this merchandise to ensure your satisfaction. To process a return or exchange, we require you to provide the original receipt. Before finalizing your purchase, please verify measurements, finishes and light sources. Delivery and handling fees are not refundable. Please Note: Custom or Made-to-order items cannot be returned or exchanged. For more information, please see our Terms & Conditions.

MPNs

LS-PRO-C-16-16-2000

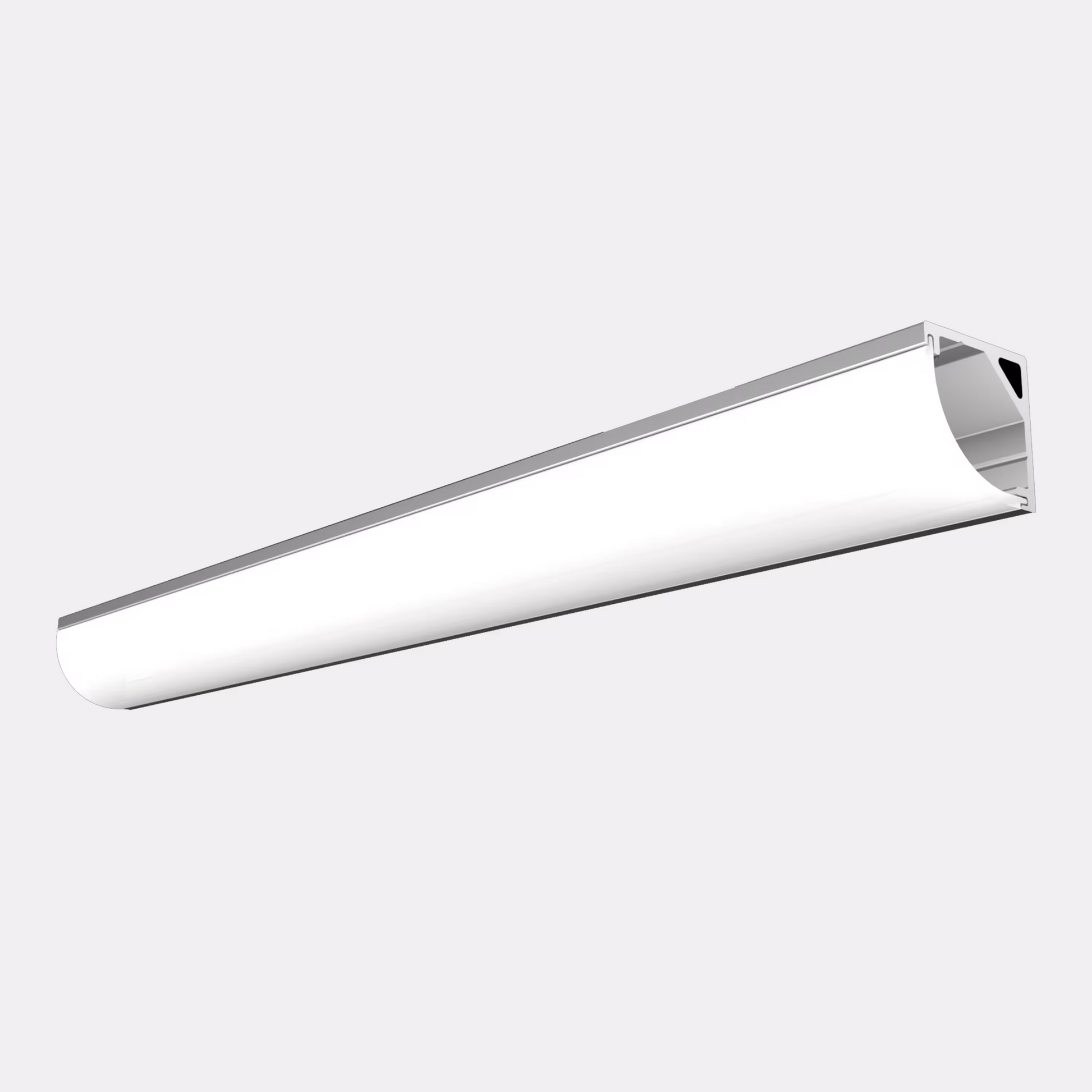

Corner-mounted 2m anodized aluminium LED profile kit with opal diffuser, end caps and mounting brackets for concealed, angled cove lighting.

Mount flush in internal corners
Install adhesive LED tape into flat channel
Soften light with opal curved diffuser
Dissipate heat via anodized aluminium
Fit easily with supplied mounting brackets
Include end caps for neat terminations

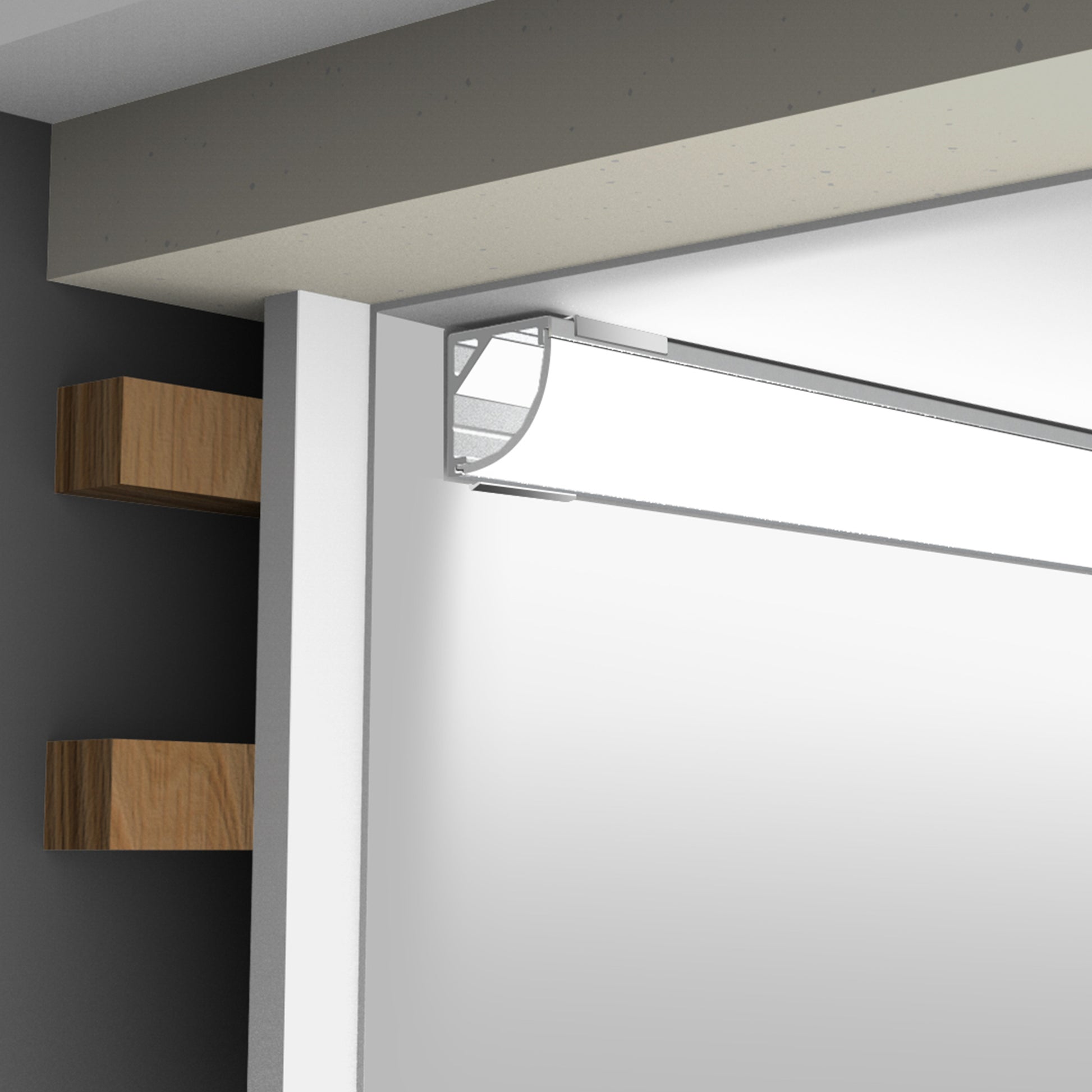

Node Lighting LED Profile Corner Profile Kit is a corner-mounted profile system from the LED Profile range by Node Lighting. The kit is intended to house adhesive LED tape in a discreet aluminium channel and provide a neat, diffused light source where wall meets ceiling or beneath joinery.

The profile uses a triangular 90-degree extrusion to sit flush into corners and project light at an approximate 45-degree angle. The kit includes a 2m anodized aluminium channel, a 2m opal diffuser, two end caps and four mounting brackets for a ready-to-fit solution.

Manufactured from anodized aluminium with internal hollow chambers, the extrusion combines structural rigidity with efficient heat dissipation for LED strips. The curved opal diffuser is a frosted polymer that snaps into integrated grooves to deliver an even, softened output and a wider beam than a flat lens.

The interior channel is sized for adhesive-backed LED tape; the profile protects the strip and evens the light. This kit does not include LED tape, driver or transformer, so these must be specified separately. The extrusion is designed for screw mounting using the supplied brackets and for flush installation in internal corners.

Lighting Design Online recommends this profile when you need a clean, concealed light line that produces balanced ambience and reliable performance. We offer practical guidance on selecting tape density, correct driver specification and installation details so the finished result is graceful, compliant and built to last under a five-year warranty.

FAQs

What is included in the kit?

The kit includes a 2m anodized aluminium channel, 2m opal diffuser, two end caps and four mounting brackets.

Does the kit include LED tape or a driver?

No. LED tape, driver/transformer and wiring are not included and must be specified separately.

How is the profile installed?

The triangular extrusion mounts into internal corners using the supplied mounting brackets and screws; the diffuser snaps into the integrated grooves.

What light distribution can I expect?

With the curved opal diffuser the profile produces a softened, even output and projects light at roughly a 45-degree angle from the corner.

What warranty does the product have?

The profile kit is supplied with a five-year warranty from Node Lighting.
