Image shown is representative. Selected variant: Default Title

Lutron

Lutron Wireless Dimmer Module In-line Switch

£156.00 GBP
£156.00 GBP £156.00 GBP
Tax included. Shipping calculated at checkout.

20210223
Lutron Wireless Dimmer Module In-line Switch

£156.00 GBP

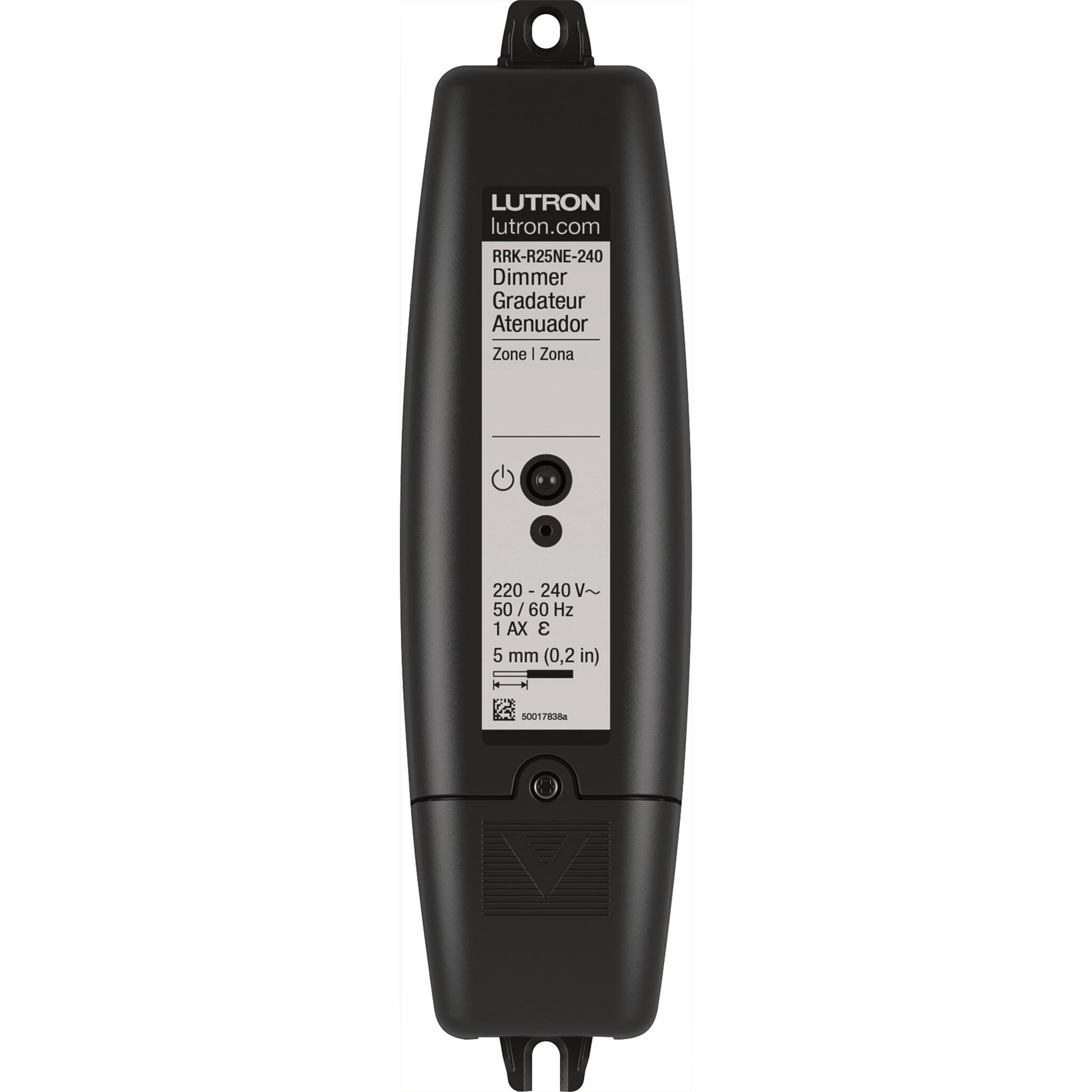

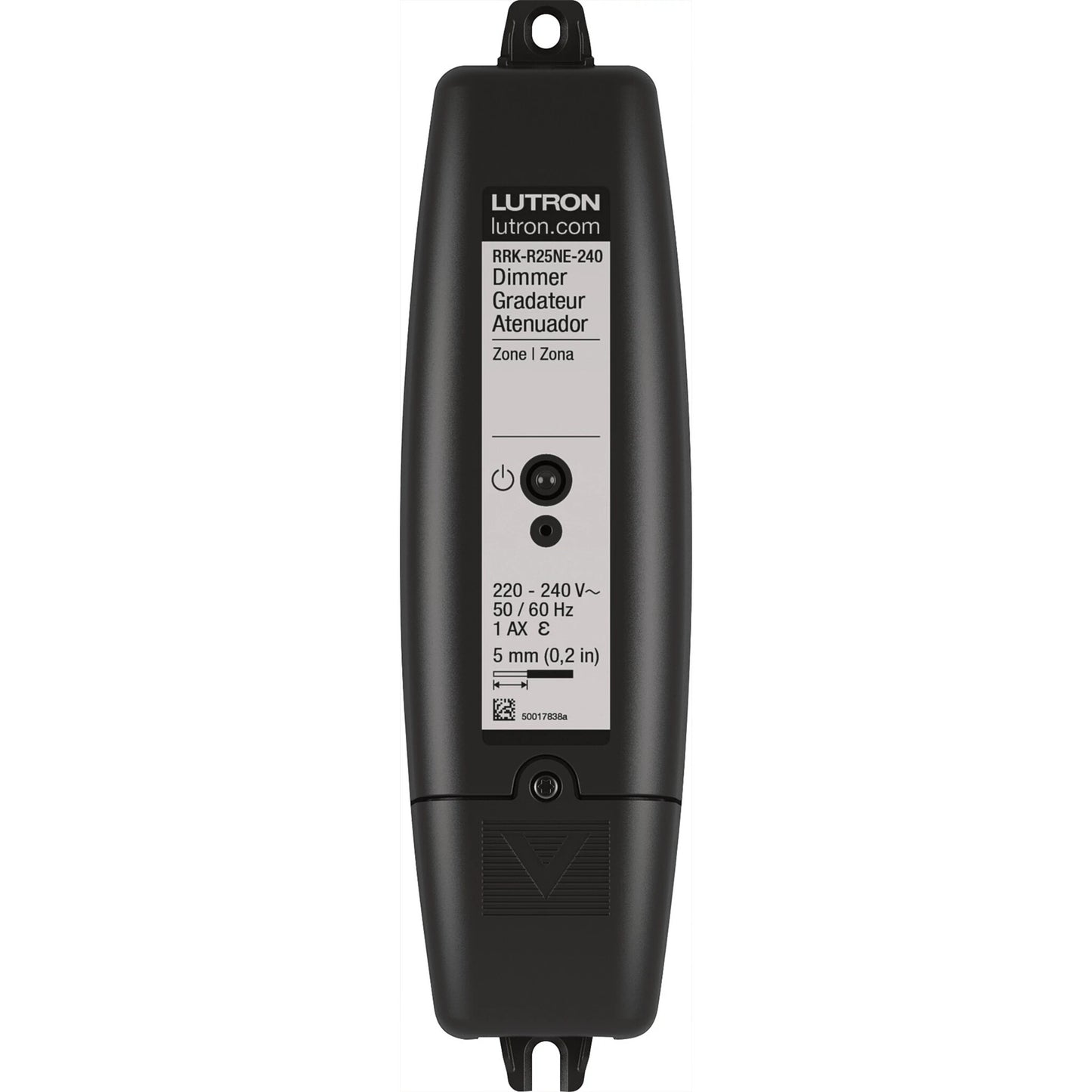

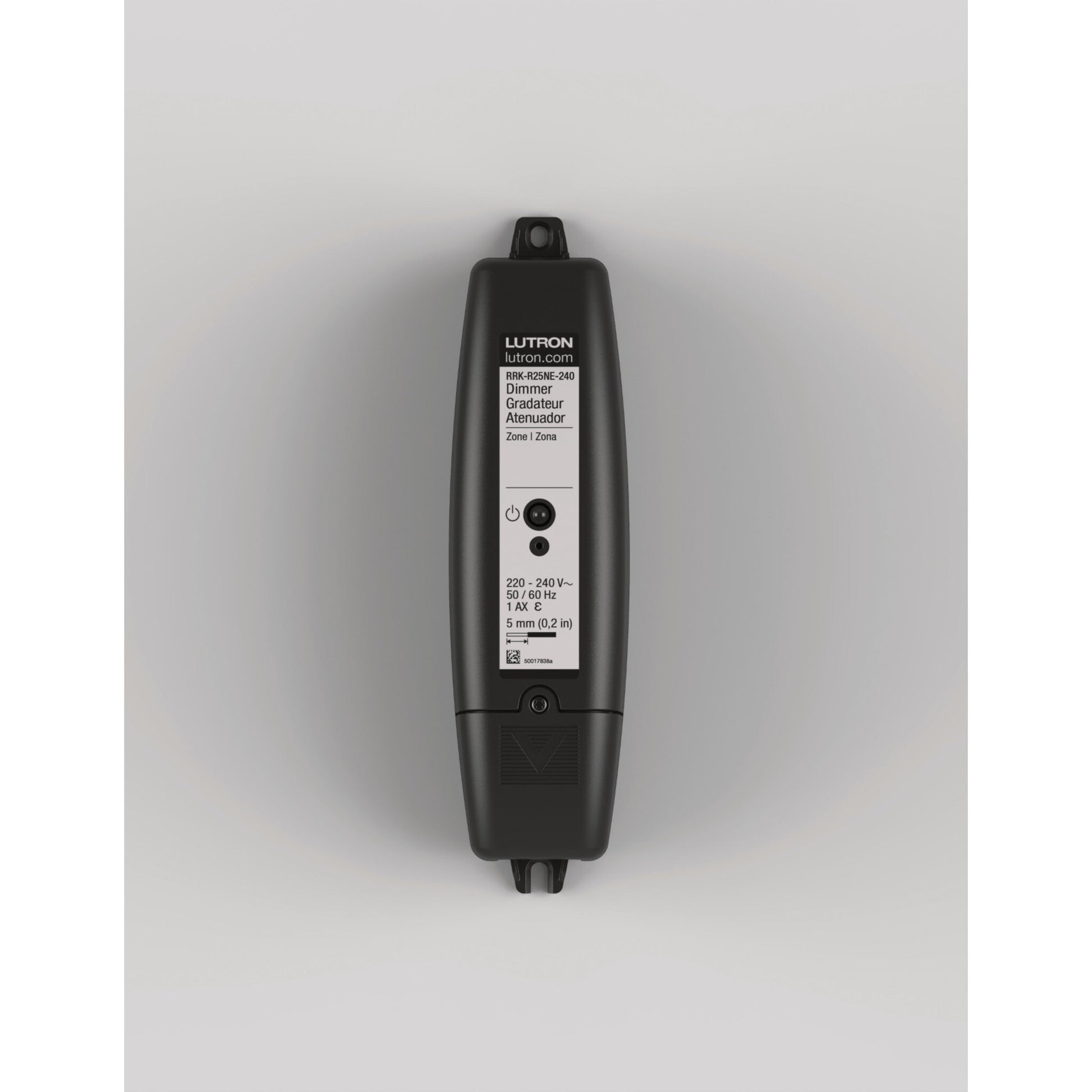

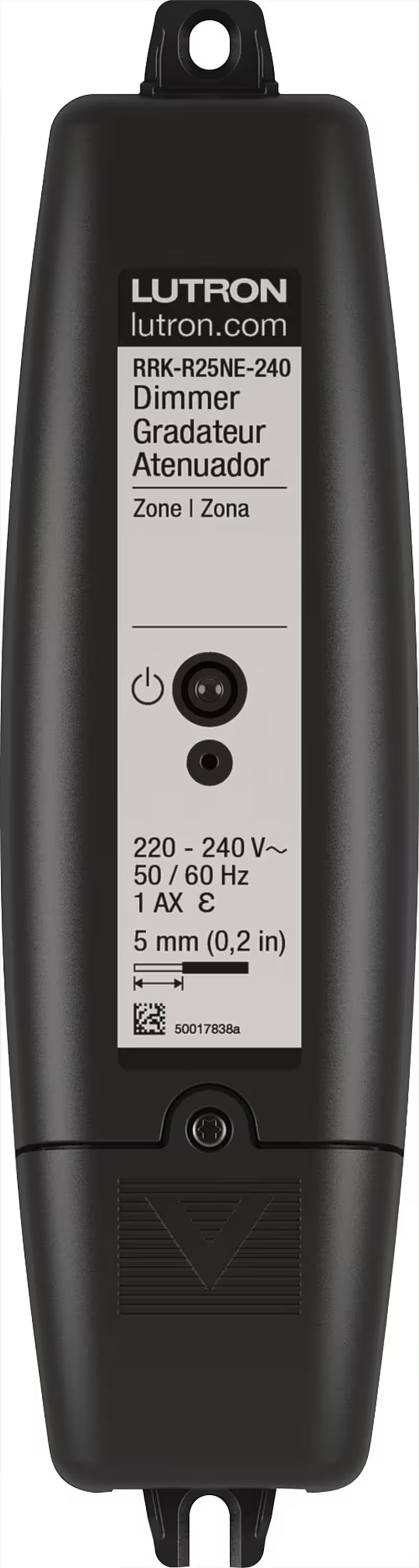

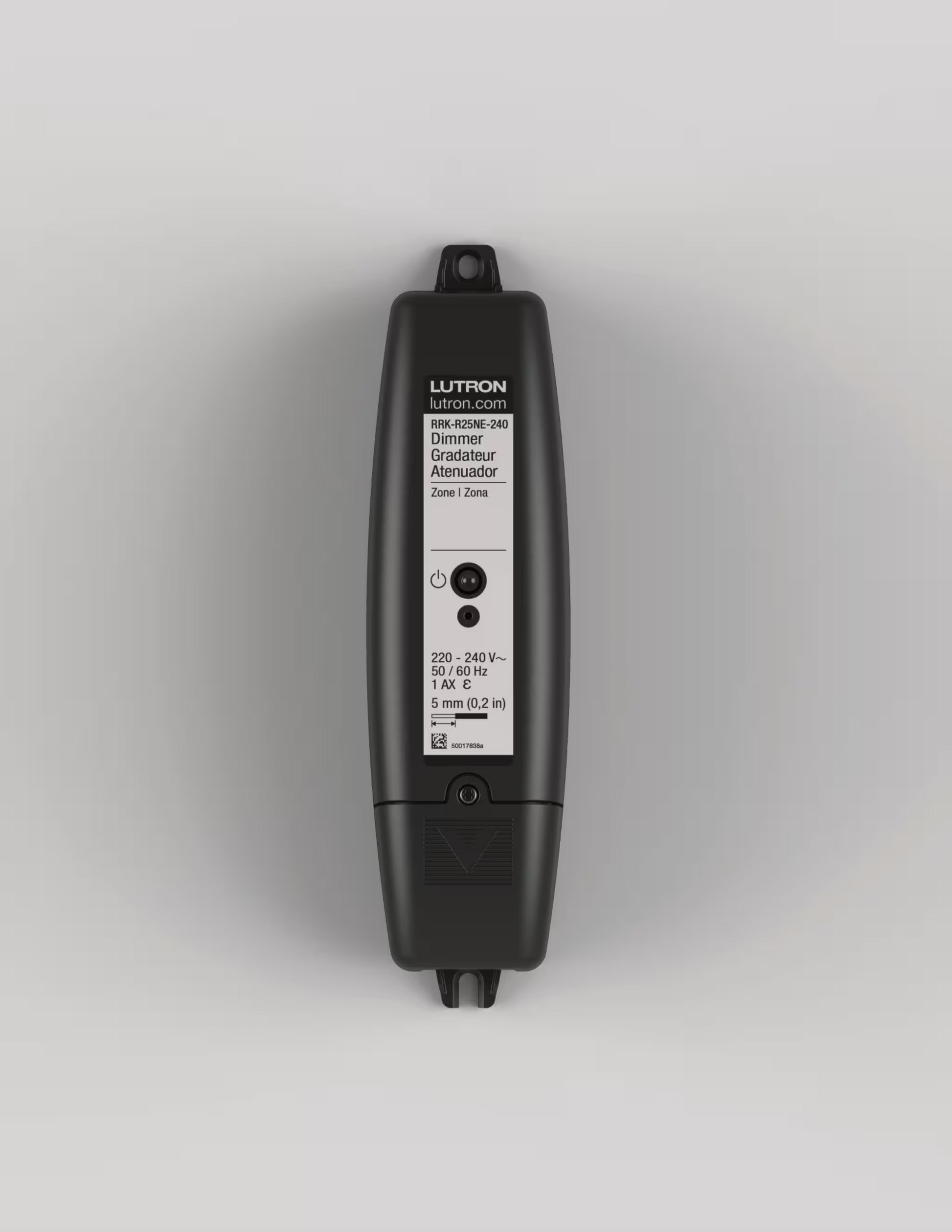

Compact Lutron in-line wireless dimmer module for retrofit ceiling install; Clear Connect RF pairing with Pico remotes, 868 MHz.

  • Enable wireless control with Clear Connect RF

  • Pair with Pico remotes and occupancy sensors

  • Install concealed in ceiling voids or enclosures

  • Handle 6AX lighting and 2A motor loads

  • Follow printed 5 mm wire-stripping guide

Dimensions

  • Depth (cm): 4.6
  • Height (cm): 3.2
  • Width (cm): 15.3

Functionality

  • Materials-specific: Plastics / Acrylics / Etc.
  • Operating voltage: 220-240V
  • Wattage: 250

Certifications & Ratings

  • Product warranty: RA2 Select and RadioRA 3: 2 years after date of shipment by Lutron. HomeWorks QS and HomeWorks: Up to 2 years – 100%; more than 2 years, but not more than 5 years – 50%; more than 5 years, but not more than 8 years – 25%; more than 8 years – 0%. These warranty periods only cover residential applications. To the maximum extent permitted by applicable law, if this product is installed in a commercial application, the warranty period is limited to 2 years.
  • CE (EU directive) compatible?: Yes
  • Interior / exterior restrictions: Interior Use Only

Manufacturer Part Numbers

RRK-R6ANS-240

FAQs

What wireless protocol and frequency does this module use?
The module uses Lutron Clear Connect RF and operates on an 868 MHz channel for RA2 Select systems.

What loads can the in-line dimmer control?
The RRK-R6ANS-240 variant is specified for up to 6AX general-purpose lighting and 2A (0.5 HP) motor loads.

Can I control this module remotely or via scenes?
Yes. Pair with Pico wireless controls and a RA2 Select main repeater to enable remote control, scene programming and scheduling through the Lutron App.

Is this suitable for retrofit ceiling installation?
Yes. Its compact, pill-shaped housing and mounting tabs are designed for concealed or ceiling-void mounting and retrofit applications.

Are lamps, drivers or transformers included?
No. Lamps, drivers and transformers are not supplied with the module; wiring and commissioning accessories are provided by the system configuration.
