Flos

Flos Coordinates Ceiling 4

Name: Flos Coordinates Ceiling 4
Brand: Flos
SKU: 16033176
Price: 4510.0 GBP
Availability: InStock

£4,510.00 GBP

£4,510.00 GBP ~~£4,510.00 GBP~~

Tax included. Shipping calculated at checkout.

16033176

Flos Coordinates Ceiling 4

£4,510.00 GBP

Surface-mounted grid light in anodized aluminium with integrated LED strips and platinum silicone diffusers. Dimmable via push, 1–10V or DALI.

Create diffuse ambient light with integrated LED strips
Specify high colour fidelity with CRI 95

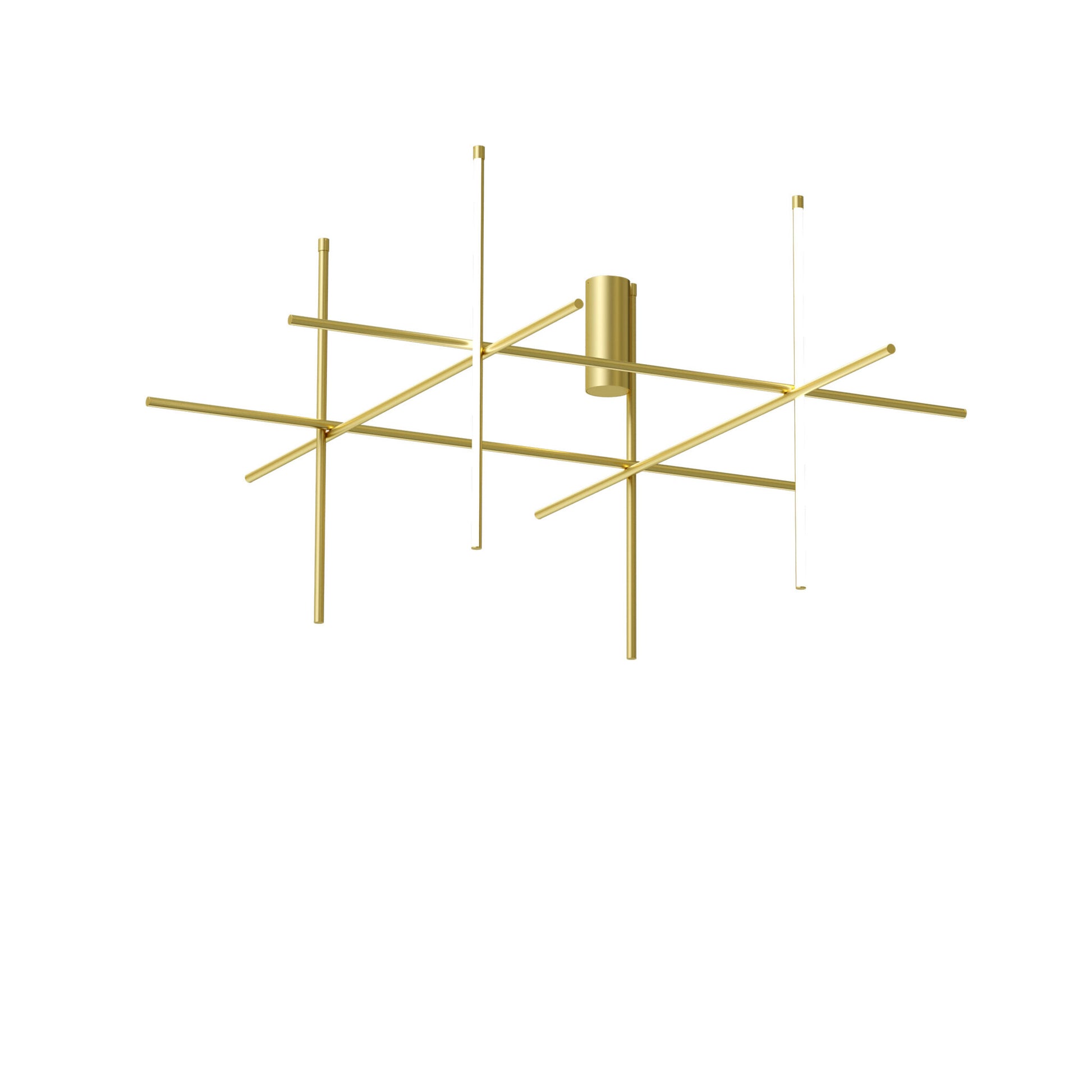

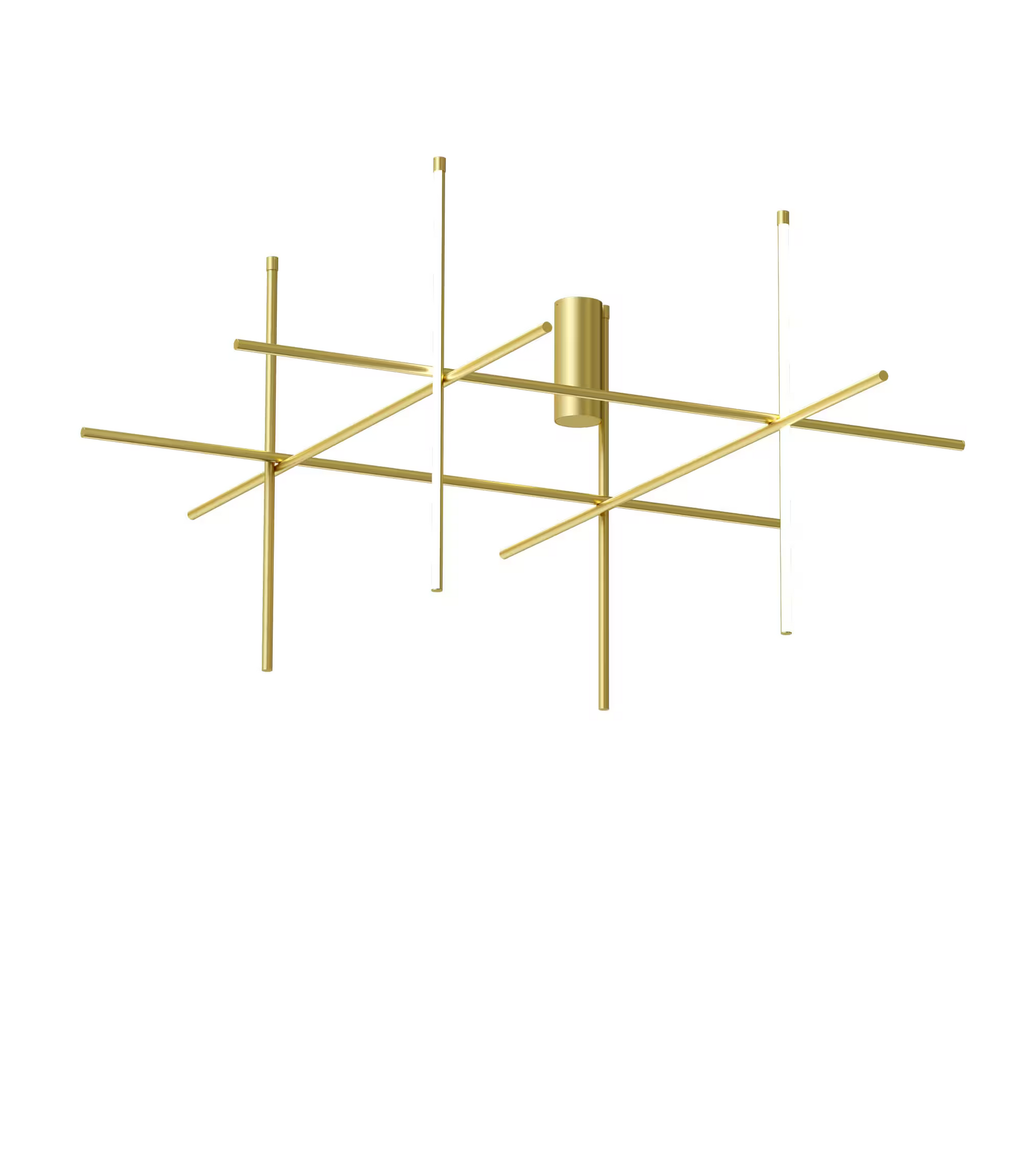

Choose Anodized Champagne or Argent finish
Set intensity via push, 1–10V or DALI
Mount flush to ceiling with matching rose

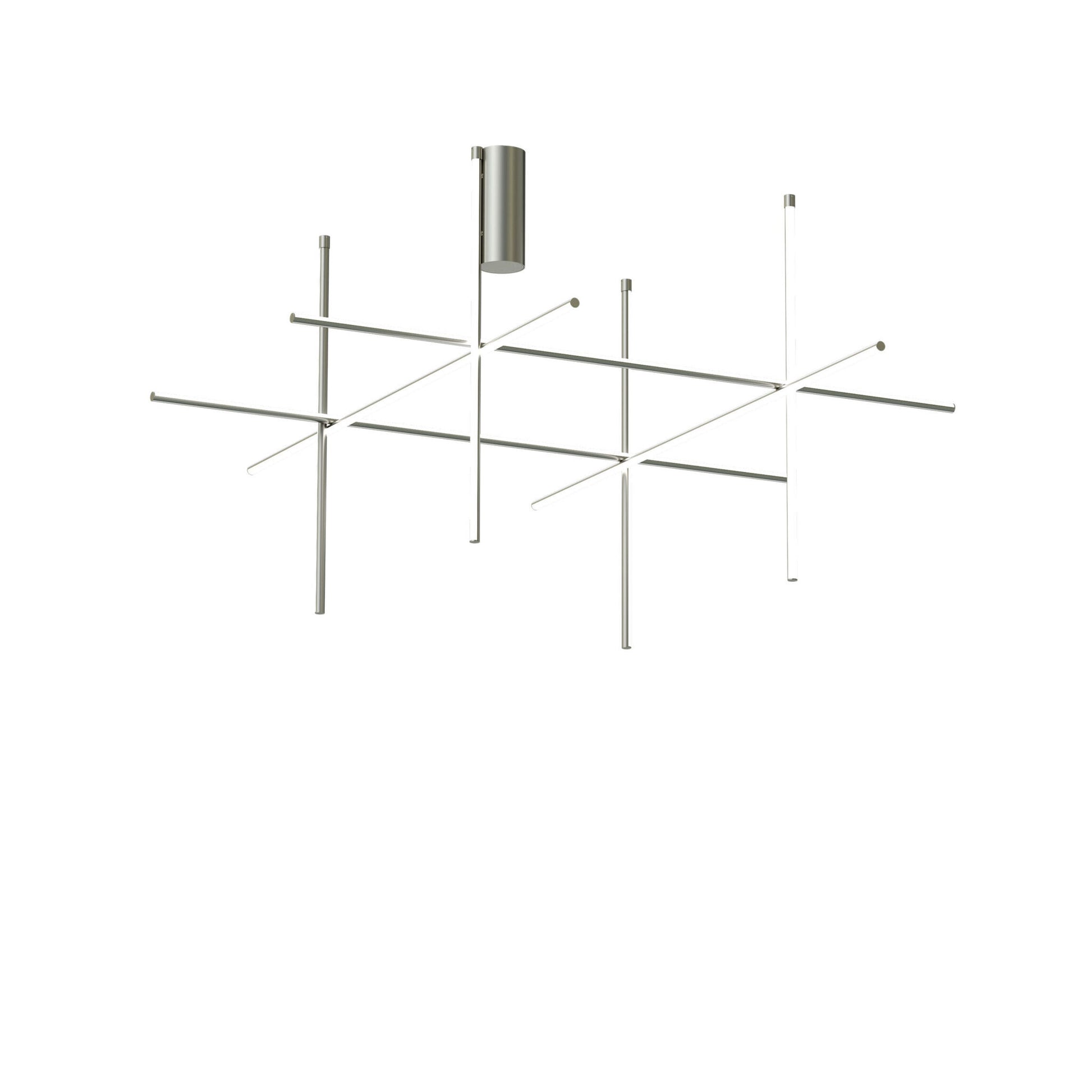

The Flos Coordinates Ceiling 4 is a surface-mounted ceiling light designed by Michael Anastassiades for the Coordinates range. The sculptural composition of intersecting linear luminaries forms a rectilinear grid that delivers diffuse ambient illumination for contemporary interiors.

Its geometry consists of four main horizontal and four vertical rods intersecting at right angles to create depth while remaining minimal. The fixture is available in Anodized Champagne and Argent finishes and the modular form is intended to be repeated or specified as a pared-back chandelier depending on scale.

Each linear element is extruded anodized aluminium with a platinum optical silicone diffuser that conceals integrated LED strips. Mechanical and electrical connections are engineered to be invisible and the structure is supported by a matching cylindrical ceiling rose that houses the electronics.

The integrated LED strips provide even, soft ambient light with a high colour rendering index (CRI 95), suitable for living rooms, reception areas and architectural spaces where accurate colour and balanced ambience matter. The design emphasises calm contrast between the matte metal and glowing diffusers to create a controlled atmosphere.

The Coordinates Ceiling 4 is surface-mounted and requires its own ceiling rose; the rose contains the integrated electronics and supports dimming via push, 1–10V and DALI systems. A push-dimming function is included in the rose for installations without external control, and a Class III variant is available for use with a remote power supply. The fixture is rated IP20 and intended for interior dry locations only. The product is supplied with a 2 year manufacturer warranty.

Lighting Design Online can advise on siting, scaling and dimming selection so the Coordinates Ceiling 4 achieves the intended ambience within a layered lighting scheme. Our design-led approach and project-friendly support help you specify with clarity and professional assurance, so the finished result feels right as well as looking considered.

Dimensions

Weight (kg): 8.1
Height (cm): 95
Width (cm): 176.2

Functionality

Materials-specific: Metal
Operating voltage:
- Anodized Champagne: 230/240V
- Argent: 48V
Includes bulbs: Yes
F-norm rated: Yes
Cable excluded?: No

Certifications & Ratings

Recommended application surface: Ceiling
Product warranty: 2 years
IP rating: IP20
CE (EU directive) compatible?: Yes
Safety classification: Class I
Interior / exterior restrictions: Interior Use Only

Flos Lighting

Italian Lighting

Flos is an Italian lighting manufacturer known for collaborating with leading designers to produce refined, architecturally minded fittings. The brand combines precise engineering with careful material choices extruded aluminium, technical diffusers and integrated LED systems to deliver considered light and enduring form. Flos products are widely used in high-quality domestic and commercial interiors where clarity of light, workmanship and compatibility with professional controls are required. For projects that demand dependable performance and a restrained aesthetic, Flos remains a trusted specification choice.

Visit Flos Lighting

Manufacturer Part Numbers

Anodized Champagne	F1856044
Argent	F1856033

FAQs

Is the Coordinates Ceiling 4 suitable for bathrooms or wet areas?

No. The fixture is IP20 rated and intended for interior dry locations only.

What dimming systems does it support?

The integrated electronics in the ceiling rose support push, 110V and DALI. A push-dimming function is included for installations without external control.

Are lamps or an external driver required?

No separate lamps are required. The light source is integrated LED strips and the ceiling rose contains the necessary electronics/driver.

Can I use Coordinates Ceiling 4 in larger grid installations?

Yes. The modular geometry is designed to be repeated for larger custom installations; each configuration requires its own ceiling rose and a Class III option is available for remote power supplies.
