Ecopac UK Power Non Dimmable LED Driver

Ecopac UK Power Non Dimmable LED Driver is a compact, design‑led constant‑voltage power supply intended for LED strips and fixtures. Supplied in the Non Dimmable range, the unit pairs a slim white enclosure with practical installation details to sit discreetly in architectural cavities or surface‑mounted on service voids.

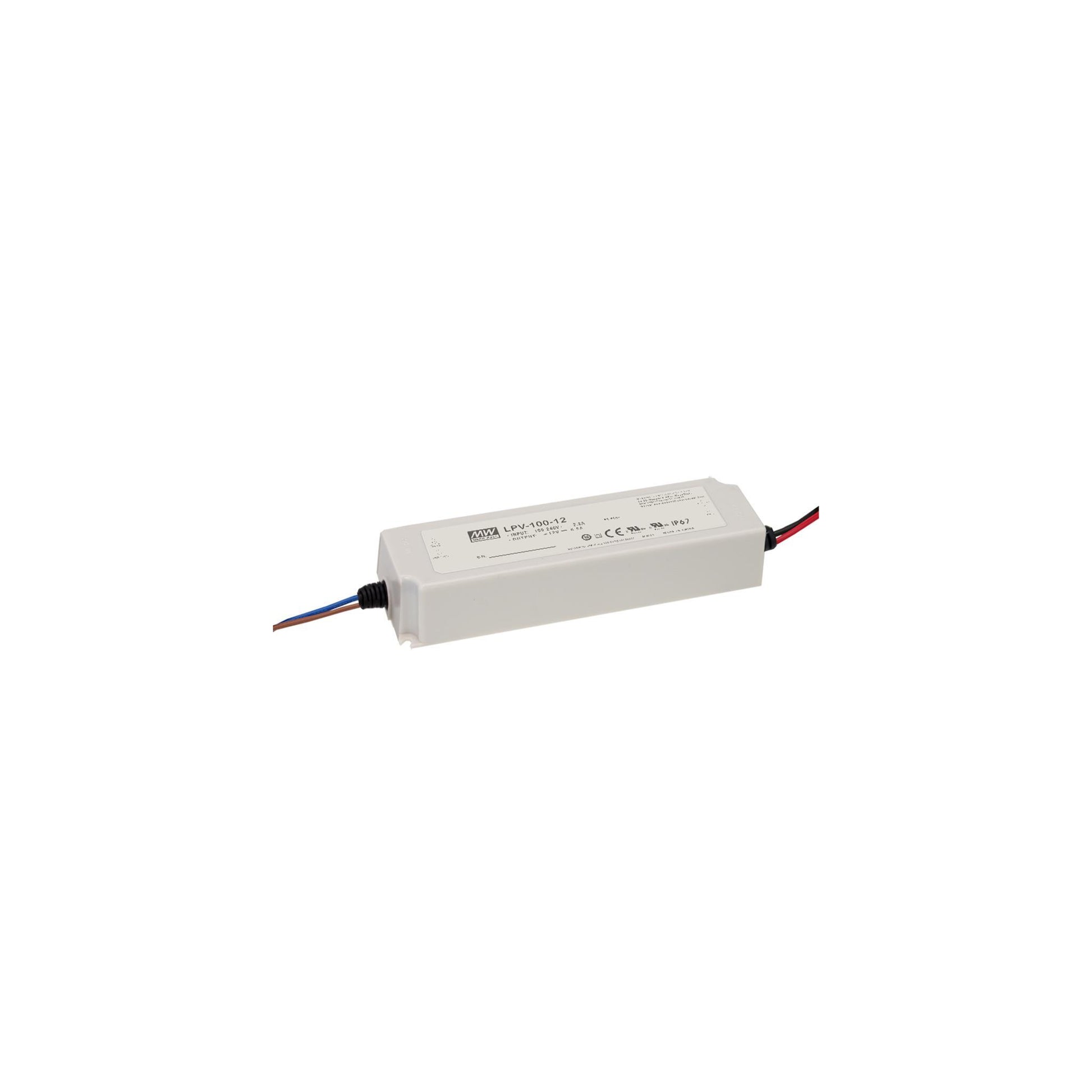

The driver uses an elongated, rounded rectangular form with integrated mounting tabs and pre‑wired cable leads for direct connection. The slim profile is suited to narrow spaces and concealed mounting; the product is offered as a non‑dimmable constant‑voltage unit.

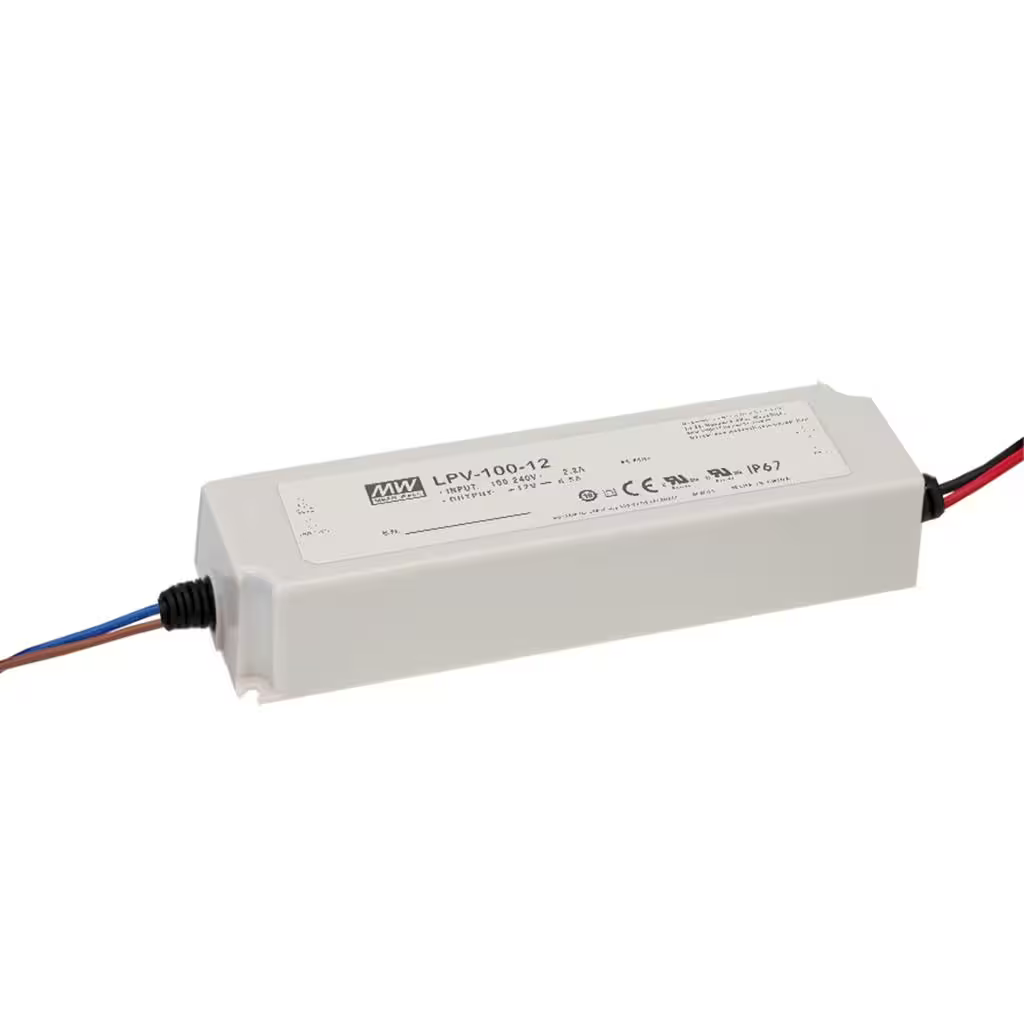

Constructed with a matte white plastic enclosure and black strain‑relief grommets at the wire exits, the unit carries international safety marks and an IP67 label indicating a sealed finish suitable for damp or outdoor locations. Surface mounting is assisted by the moulded tabs at each end.

Functionally this is a 100W constant‑voltage driver providing a regulated 12V DC output for LED loads. The label and specifications indicate universal AC input, Class II isolation (no protective earth), and protective features including 300VAC surge tolerance for 5 seconds. The driver is convection cooled and has completed full‑load burn‑in testing for reliability.

For installation the pre‑wired leads (AC input and DC output) simplify wiring; the unit is non‑dimmable and should be installed following local wiring regulations. Its sealed construction and safety approvals make it a straightforward choice where a compact, reliable constant‑voltage supply is required.

At Lighting Design Online we place this Ecopac driver in the context of a considered lighting solution: it’s a practical, well‑specified component that removes uncertainty when powering 12V LED strips. We emphasise clarity and technical assurance so designers and installers can specify with confidence and achieve a durable, quality outcome.
