Astro

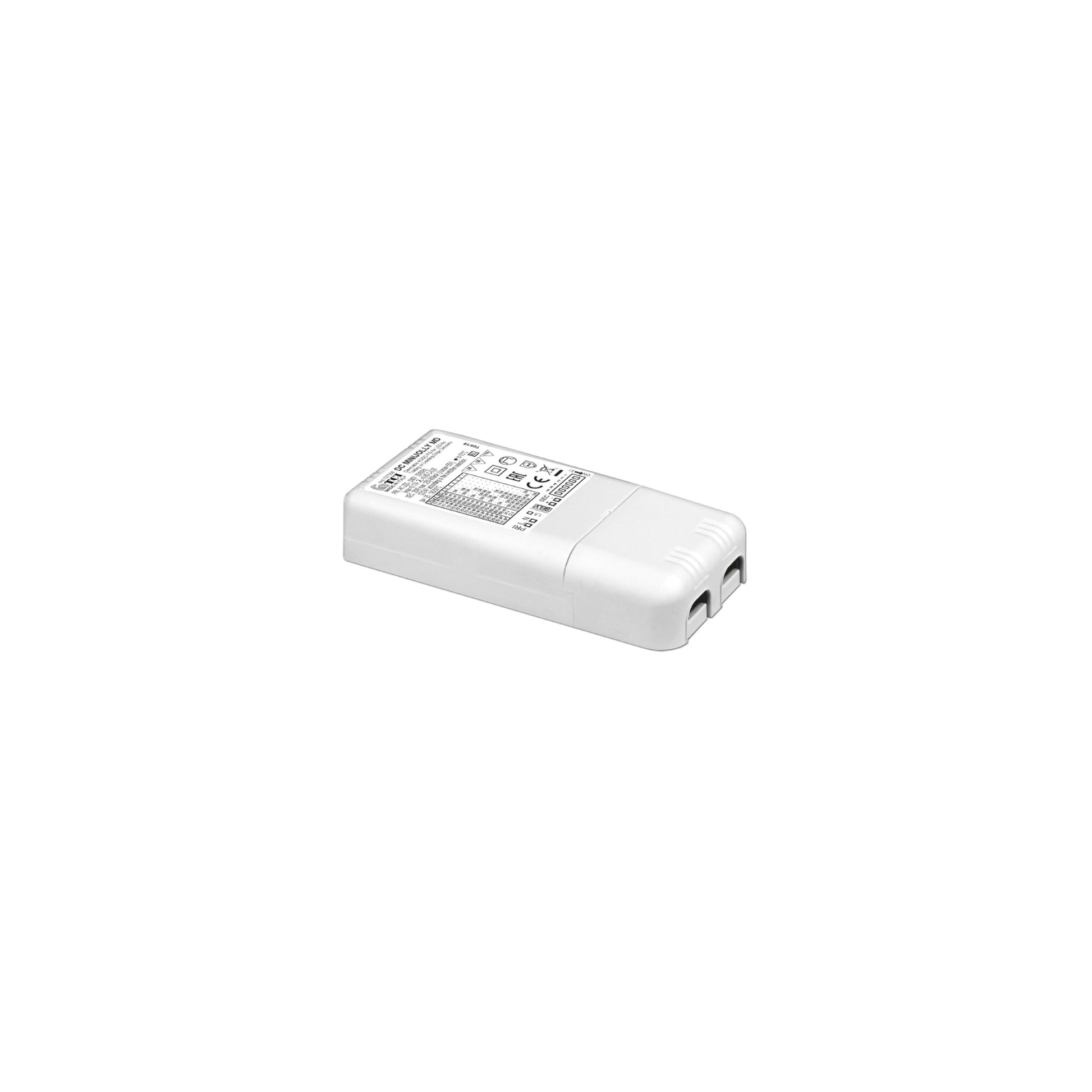

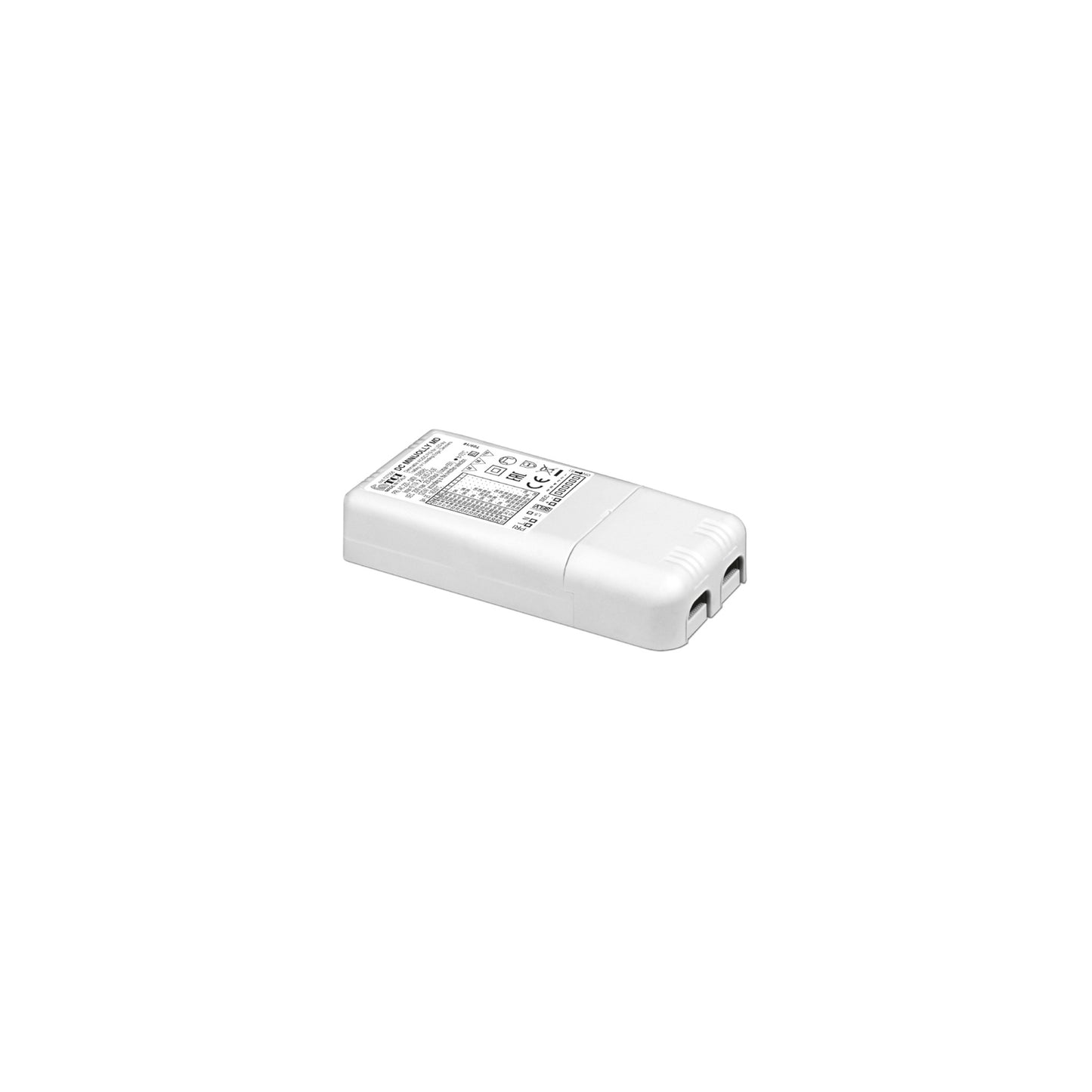

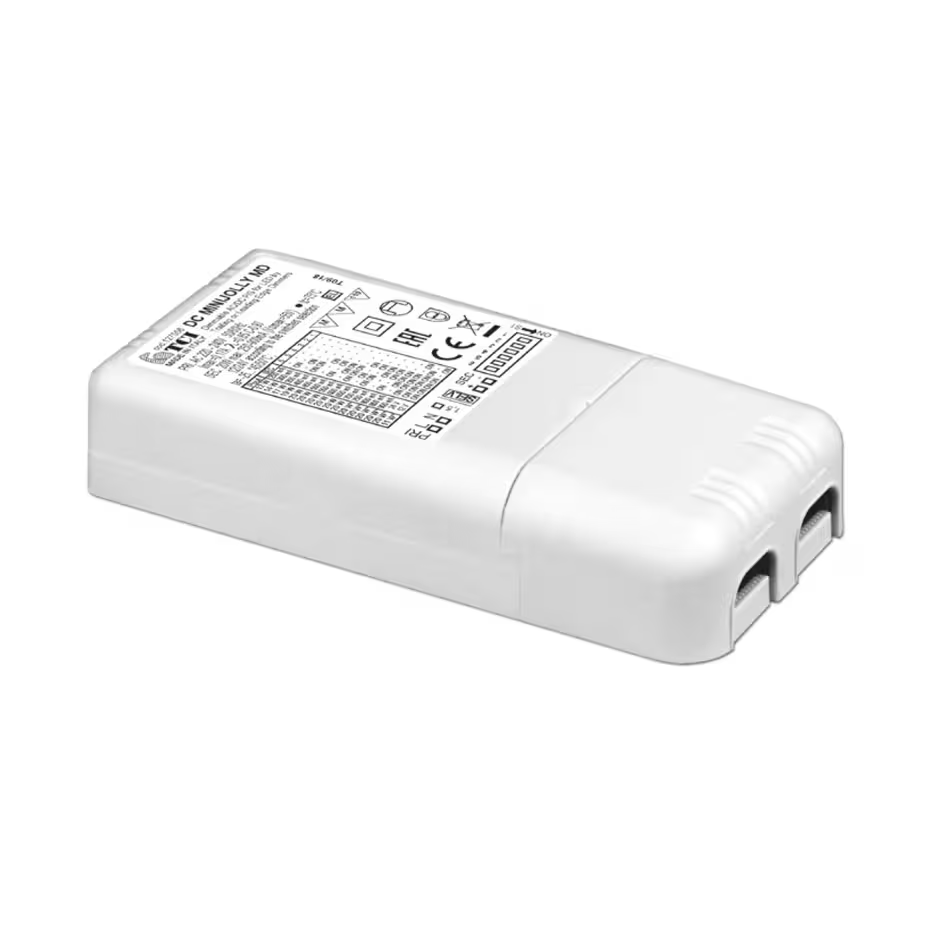

Astro DC MINIJOLLY MD LED Driver

£88.00 GBP
£88.00 GBP £88.00 GBP
Tax included. Shipping calculated at checkout.

20203674
Astro DC MINIJOLLY MD LED Driver

£88.00 GBP

Compact Astro LED driver for CC 250–700mA or 12V CV output; phase‑cut dimmable, IP20 for indoor luminaires.

  • Install in tight ceiling voids

  • Select CC 250–700mA or 12V CV

  • Use with phase‑cut dimmers

  • Refer to wiring diagram on label

  • Specify for indoor use (IP20)

  • Benefit from a three‑year warranty

Dimensions

  • Depth (cm): 5.2
  • Height (cm): 2.2
  • Width (cm): 11

Functionality

  • Operating voltage: 220-240V

Certifications & Ratings

  • Product warranty: 3 years
  • IP rating: IP20
  • CE (EU directive) compatible?: Yes

Manufacturer Part Numbers

6008081

FAQs

What output settings does the DC MINIJOLLY MD support?
The driver supports constant current outputs of 250mA, 350mA, 500mA and 700mA, and a 12V constant voltage mode; outputs are set via the unit's configuration table.

Which dimming method is compatible with this driver?
Dimming is achieved using phasecut dimmers; confirm compatibility with your chosen dimmer and check total load using a driver calculator.

Can I install the driver outdoors or in bathrooms?
No. The DC MINIJOLLY MD is rated IP20 and is intended for indoor use only, for example in ceiling voids or within luminaires.

How are cables connected to the driver?
The unit has recessed terminal openings and two protective terminal covers for wire entry; the technical label on the casing shows wiring diagrams for correct connections.

What certifications and warranty are provided?
The driver carries CE and EAC markings and comes with a threeyear manufacturer warranty.
